From: Integrated analysis of long noncoding RNA and mRNA expression profile in children with obesity by microarray analysis

Figure 2

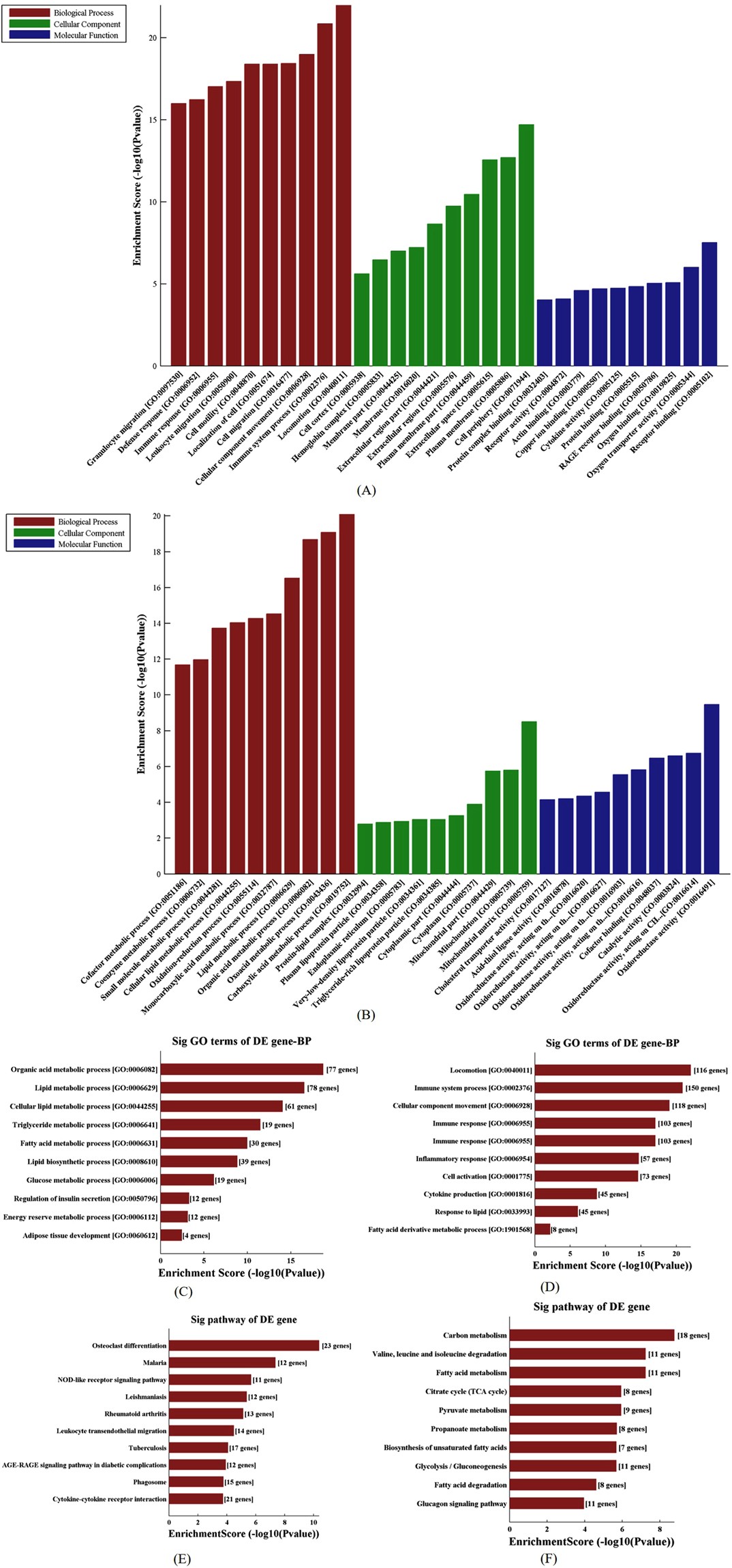

GO and pathway analysis. Red, green and blue bars represent Biological Process, Cellular Component, and Molecular Function, respectively. (A) Top 10 significantly up-regulated GO terms for differentially expressed mRNAs. (B) Top 10 down-regulated GO terms for differentially expressed mRNAs. The terms were divided into three categories, including biological process (BP, red), cellular component (CC, green), and molecular function (MF, blue). (C) The significantly up-regulated GO terms of BP for differentially expressed mRNAs. (D) The significantly down-regulated GO terms of BP for differentially expressed mRNAs. (E) Top 10 significantly up-regulated pathways of differentially expressed mRNAs. (F) Top 10 significantly down-regulated pathways of differentially expressed mRNAs.
