Figure 5 | Scientific Reports

Figure 5

From: The effects of printing orientation on the electrochemical behaviour of 3D printed acrylonitrile butadiene styrene (ABS)/carbon black electrodes

Figure 5

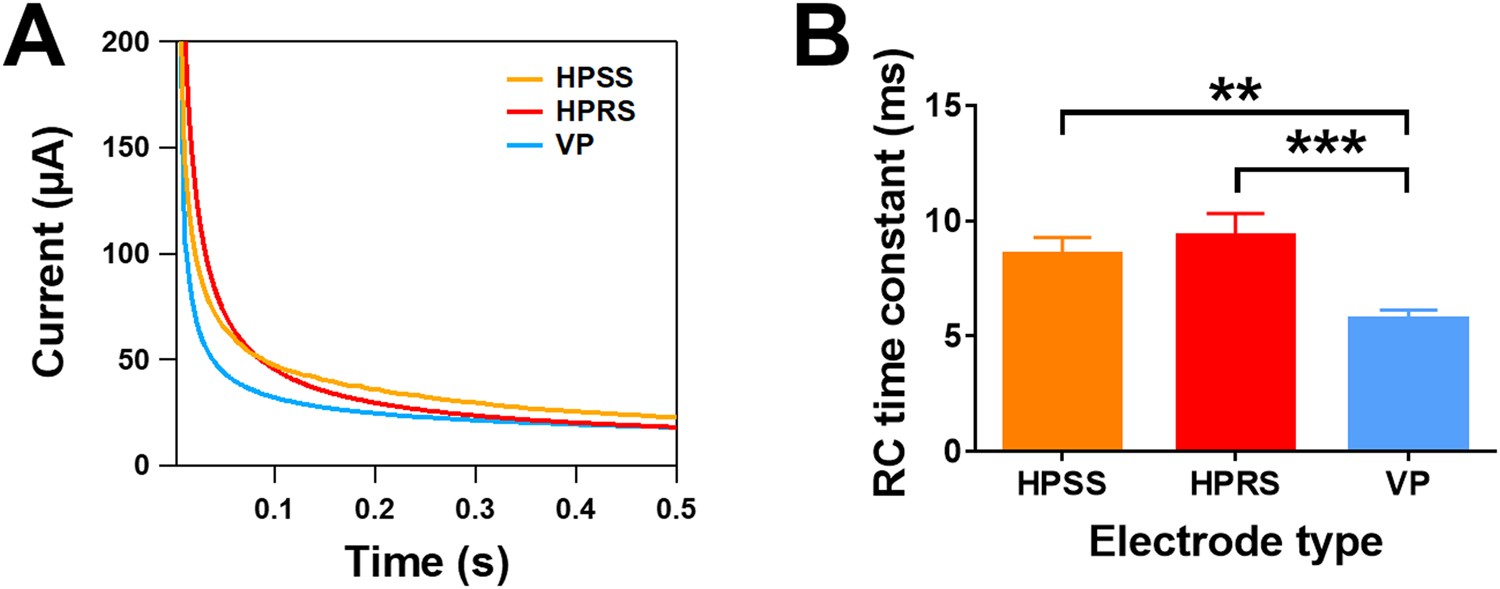

Chronoamperograms for V, HR and HS (A) on the oxidation of 1 mM ferrocyanide in 1 M KCl by stepping potential from 0 to 1.2 V vs Ag/AgCl for 1 s. (B) shows a comparison of the RC time constant, calculated from plots of lni vs t. Statistical analysis was performed using one-way ANOVA followed by a Tukey test. Data are shown as mean ± S.D., n = 4, *P < 0.05 vs vertical surface.
