Figure 6

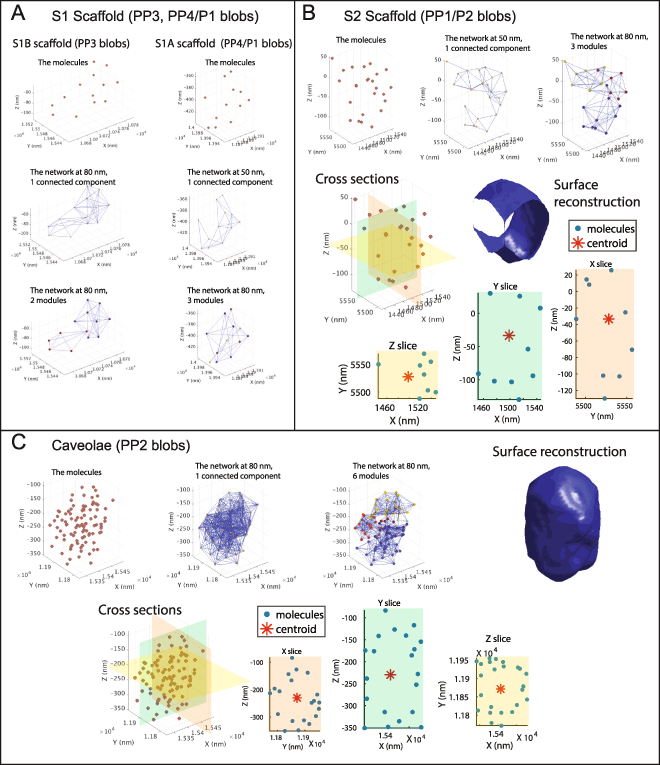

Visualization of representative blobs from PC3/PC3-PTRF cells. Blob’s molecules and networks (including number of connected components and modules) at various thresholds are shown for: (A) S1 scaffolds (PP3/PP4 blobs); (B) S2 Scaffolds (PP1 blob); and (C) Caveolae (PP2 blob). Cross-sections, XYZ slices and surface reconstructions are shown for S2 scaffolds and caveolae. Slice thickness for S2 scaffolds is 20% of the whole range of the blob size in each dimension and for caveolae 10%. S2 scaffolds are hemi-spherical and consist of 3-4 modules. Caveolae are spherical and hollow and consist of 5-6 modules.
