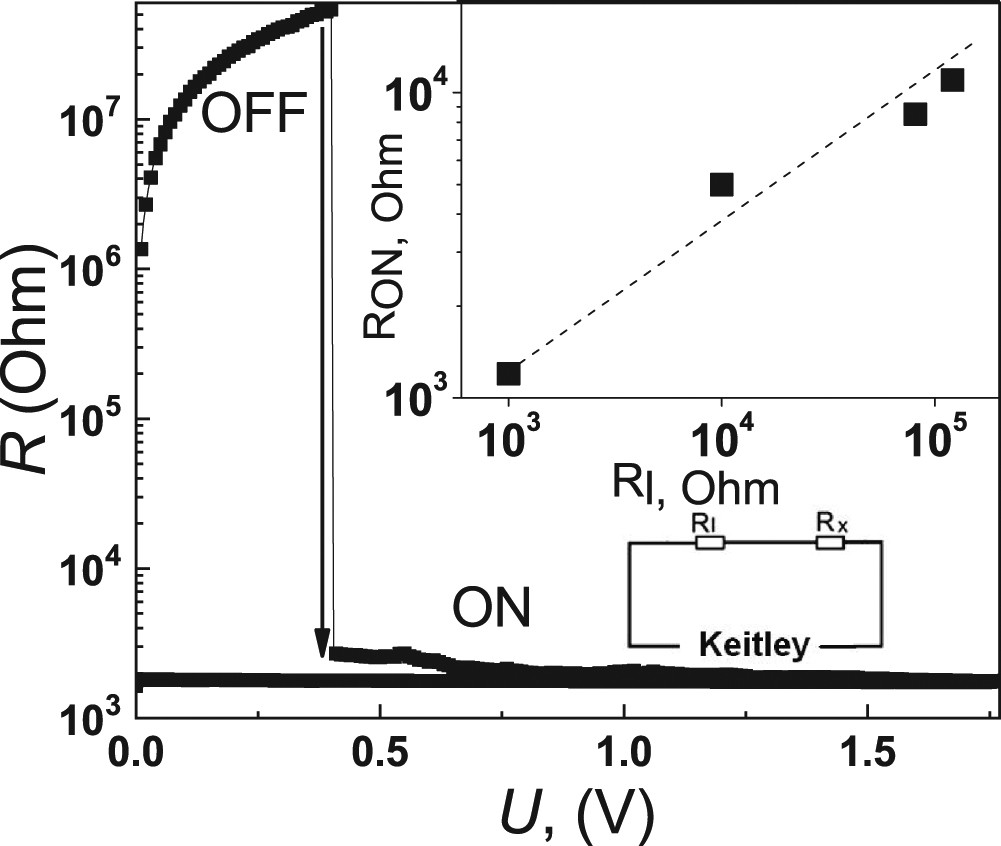

Figure 2
Resistance change at the RSE under external electrical bias. The upper inset shows the RON(Rl) dependence. Load resistor Rl < ROFF allows to perform stabilization of the sample in an intermediate state. The lower inset shows the electrical measurement setup.
