Figure 3
From: Regulation of the β-hemolysin gene cluster of Streptococcus anginosus by CcpA

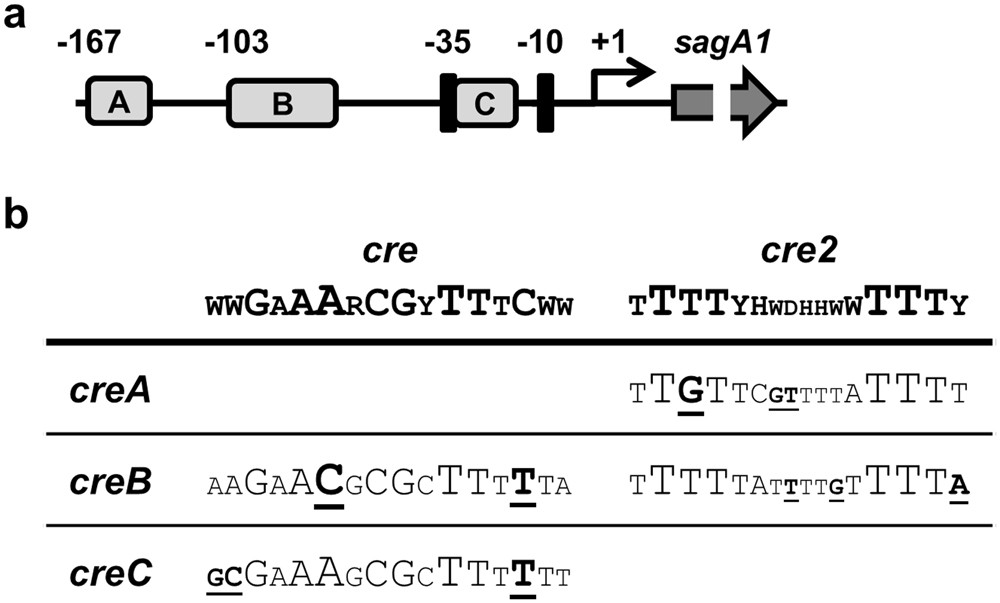

(a) The locations of the putative cre sites are illustrated in respect to the transcription start site (arrow). A: creA, B: creB, C: creC. (b) Comparison of the in silico predicted cre site in the SLS promoter and the published consensus cre sites. The size of the single nucleotides corresponds to their conservation. The creB site consists of a cre homologue overlapping a potential cre2 site. Mismatches to the consensus sequences are underlined and bold.
