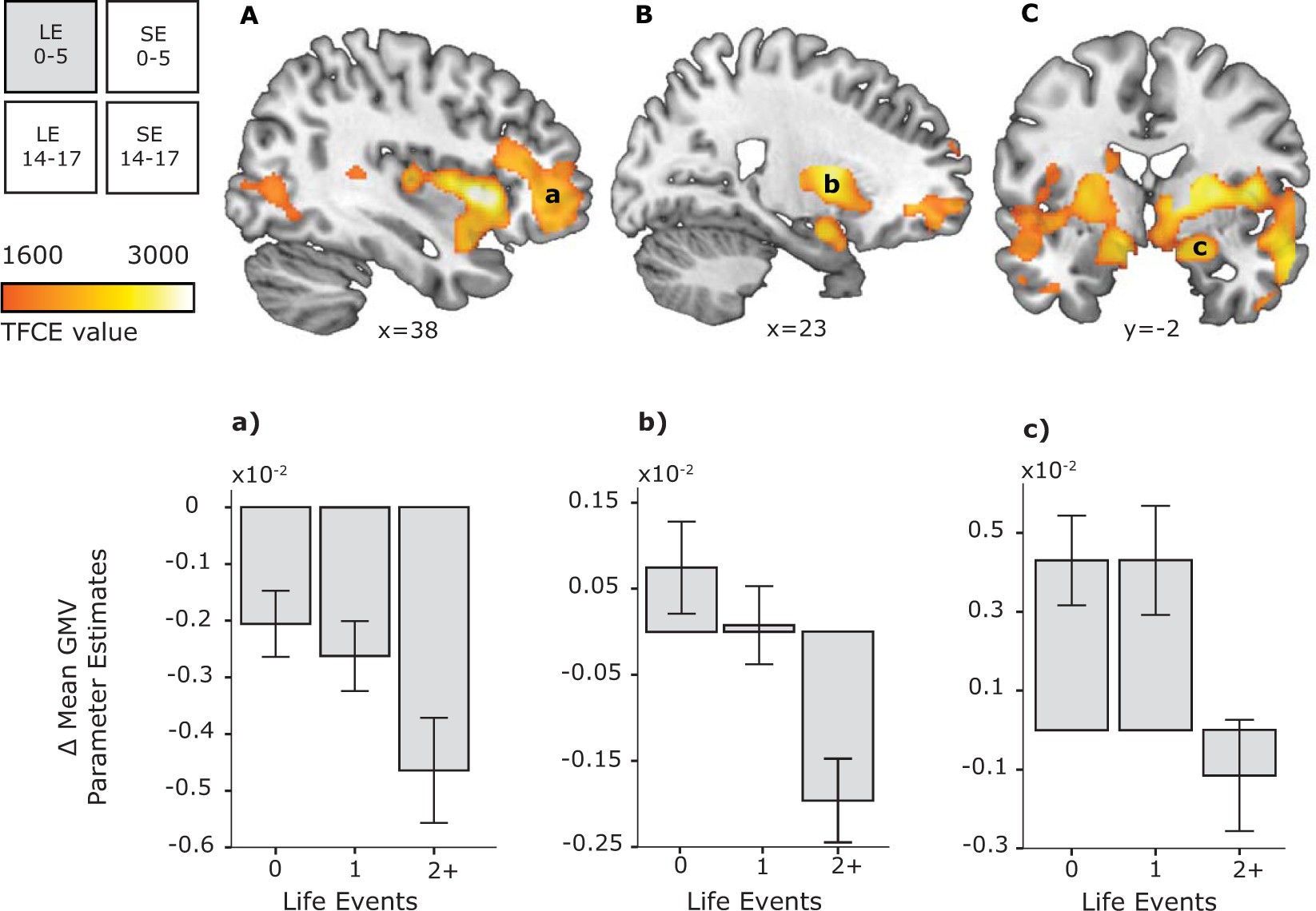

Figure 2
From: Early-life and pubertal stress differentially modulate grey matter development in human adolescents
Personal early-life events modulate grey matter volume (GMV) changes in the (A) prefrontal cortex, (B) insula, and (C) amygdala (statistical maps thresholded at TFCE PFWE < 0.05 overlaid on representative structural images). For visualization purposes, the number of adverse life events (LE) was split into three categories: 0, 1, 2+ (two or more) negative events. Graphs show parameter estimates of GMV change between ages 14 and 17. SE, social environment; TFCE, threshold-free cluster-enhancement; FWE, family-wise error; x and y indicate medio-lateral and antero-posterior location of the structural section in stereotactic space, respectively. Error bars represent +/− 1 SE.
