Figure 4
From: Natural infection of Neotropical bats with hantavirus in Brazil

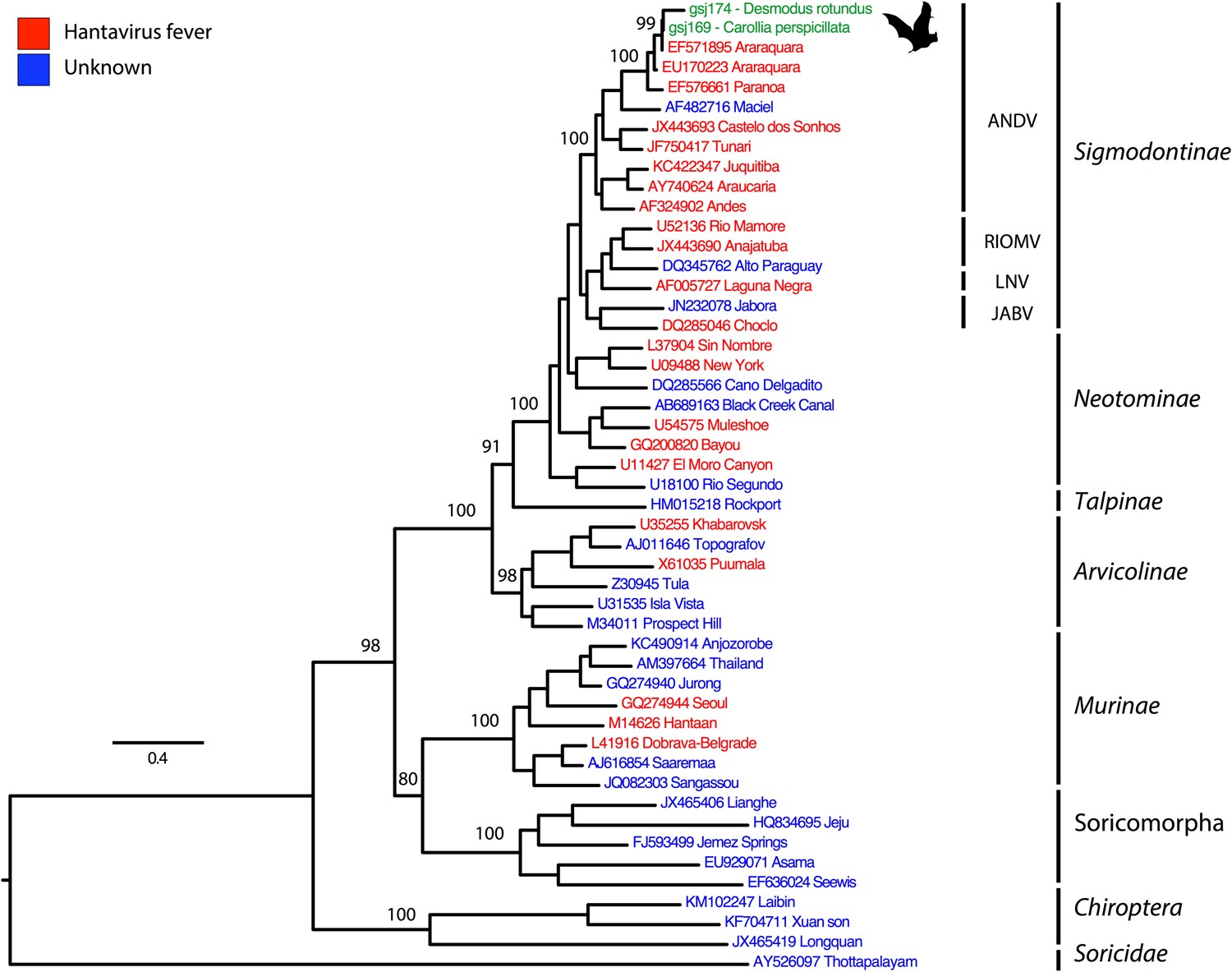

Maximum likelihood tree based on partial S segment nucleotides (~264 bp) showing evolutionary relationships of hantaviruses. The scale bar indicates evolutionary distance in numbers of substitutions per nucleotide substitutions per site, and the prime bootstrap support levels were designated. Phylogenies are midpoint rooted for clarity of presentation. Colors on hantaviruses branches indicate viruses described as human pathogen or unknown, as shown in the legend. Hantavirus sequenced in this study is highlighted with green color.
