Figure 3

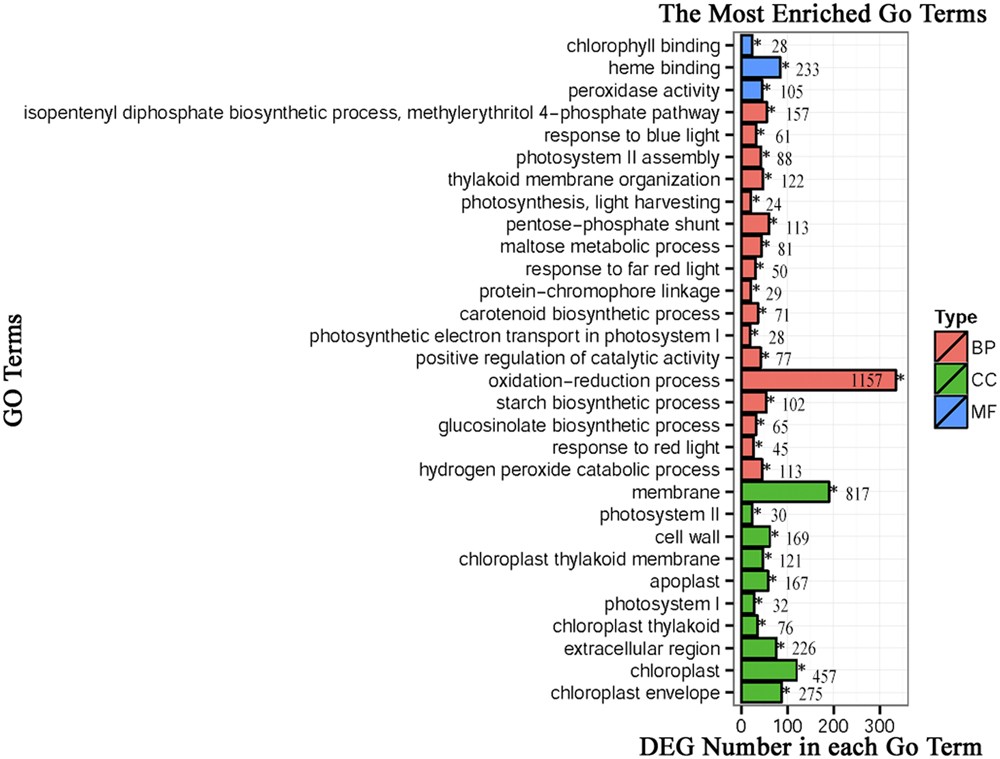

GO classification of differentially expressed genes (DEGs). The most enriched (corrected p-value < 0.001) GO terms of DEGs were summarized. The X axis represents number of DEGs. The Y axis represents GO terms. Red, green and blue represent DEGs enriched under biological process (BP), cellular component (CC) and molecular function (MF) categories, respectively. The number after the GO term is the total number of genes in the corresponding term.
