Figure 2
From: Plasmonic Optical Imaging of Gold Nanorods Localization in Small Animals

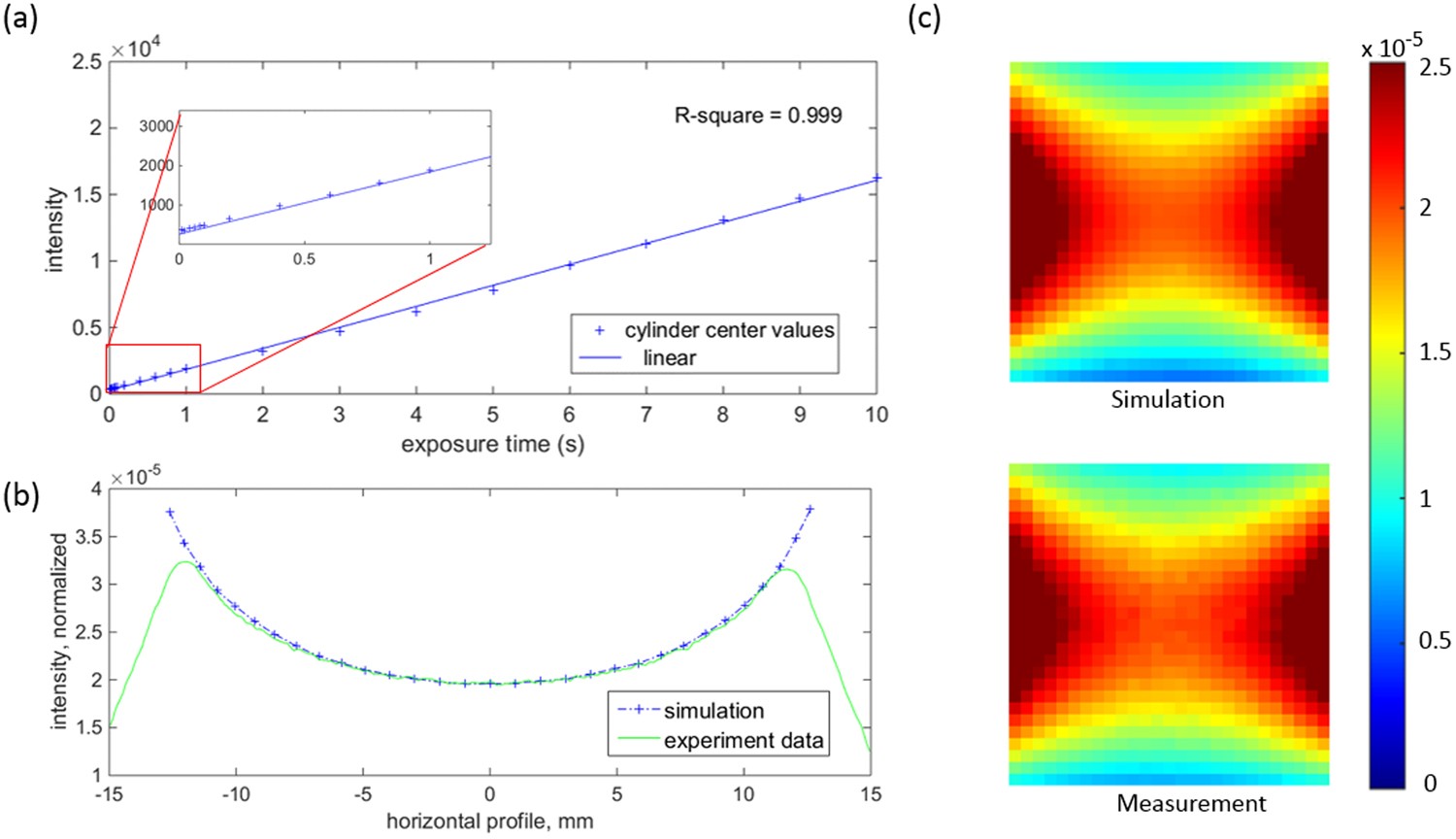

The camera reading linearity and light fluence calibration results. The linear curve fitting (R2 = 0.999) in (a) indicates the light intensity is proportional to the exposure time. (b,c) Demonstrate a good match between the simulation and measurement data. (b) Shows the horizontal profile across the center of the light filed. (c) Shows the light distributions (1 mm resolution) measured and simulated respectively within an central region of interest of 27 mm × 27 mm.
