Figure 4
From: Ordering of Hollow Ag-Au Nanospheres with Butterfly Wings as a Bio-template

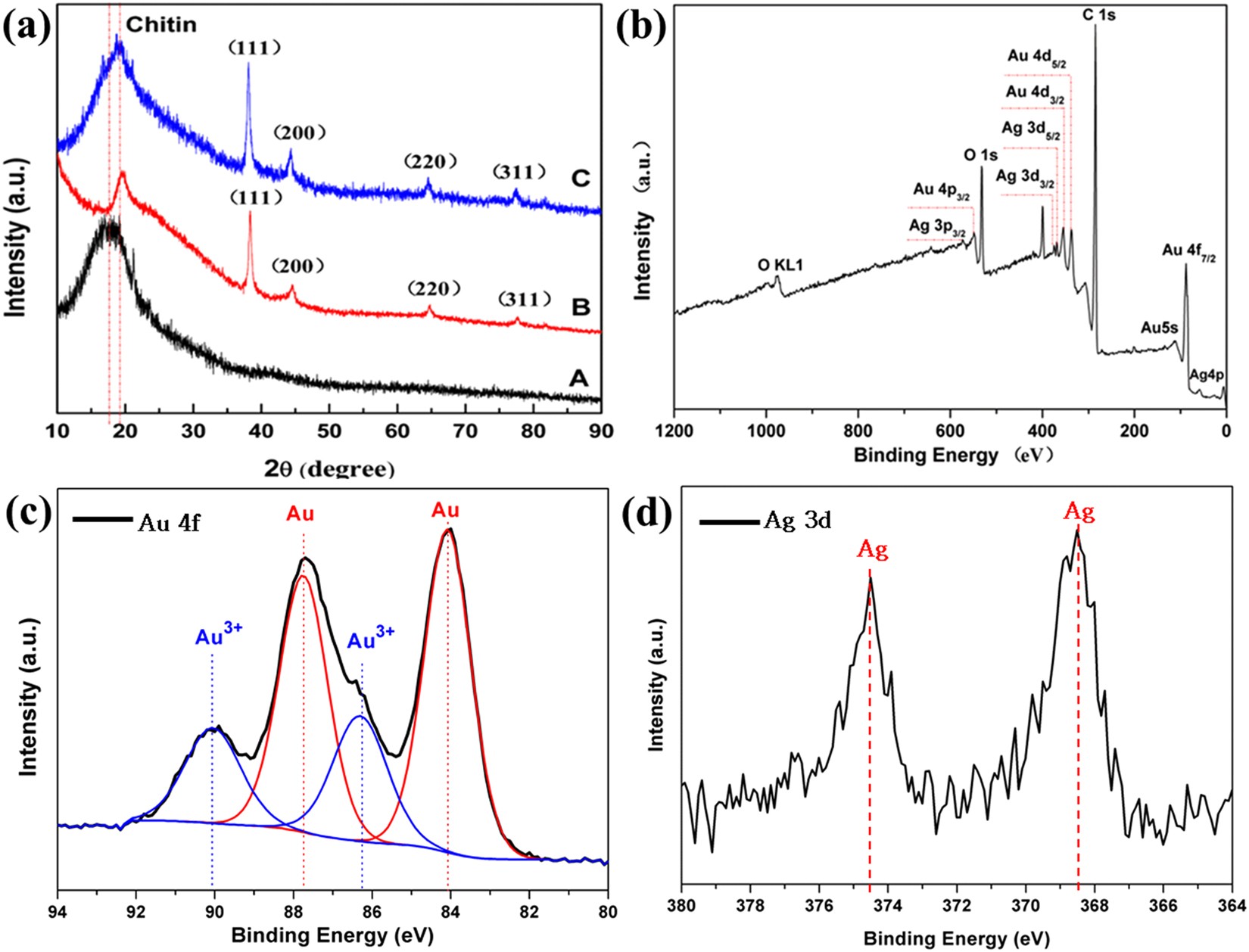

(a) XRD patterns of as-prepared products. A: original butterfly wing, B: Ag/wings, C:Au-Ag/wings (b) XPS patterns of final product (c) XPS patterns of Au 4 f (d) XPS patterns of Ag 3d.
