Figure 5
From: Ordering of Hollow Ag-Au Nanospheres with Butterfly Wings as a Bio-template

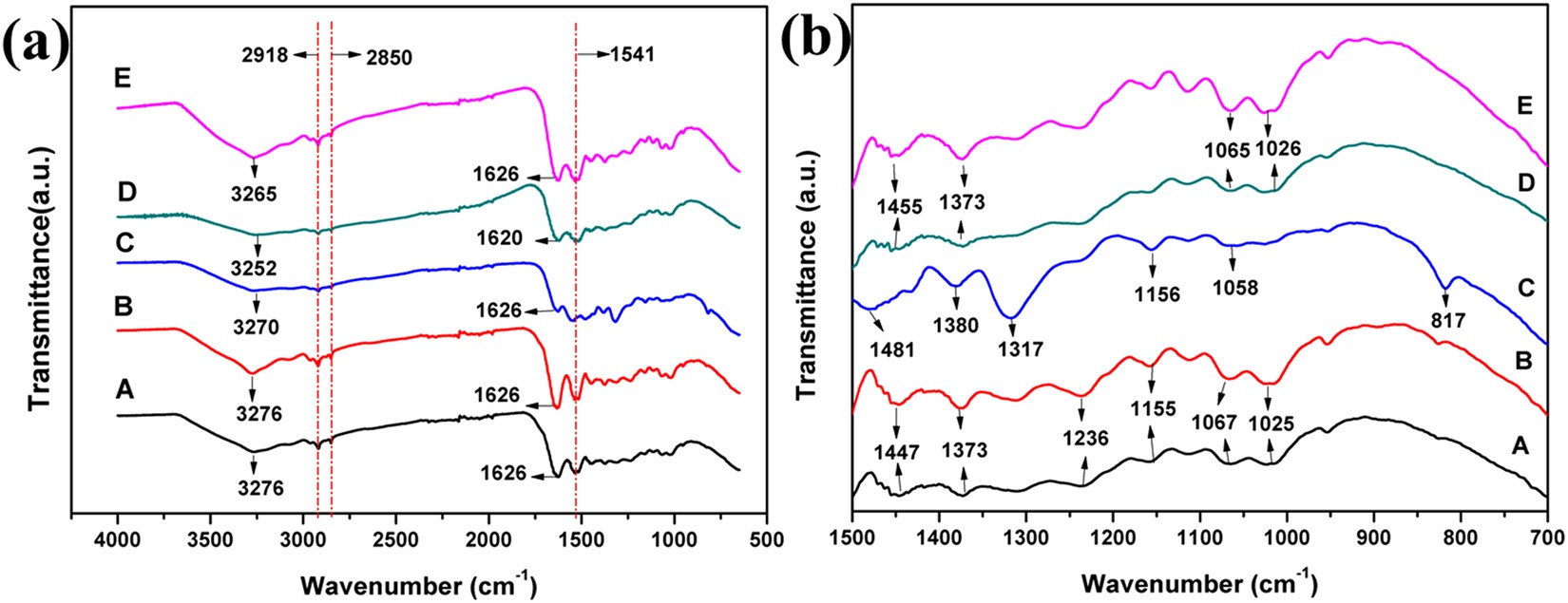

ATR-FTIR spectra of (a) the original chitin-based butterfly wings (b) butterfly wings washed by HNO3 (c) the EDA activated wings (d) the Ag/wings (e) the Ag-Au/wings3.
