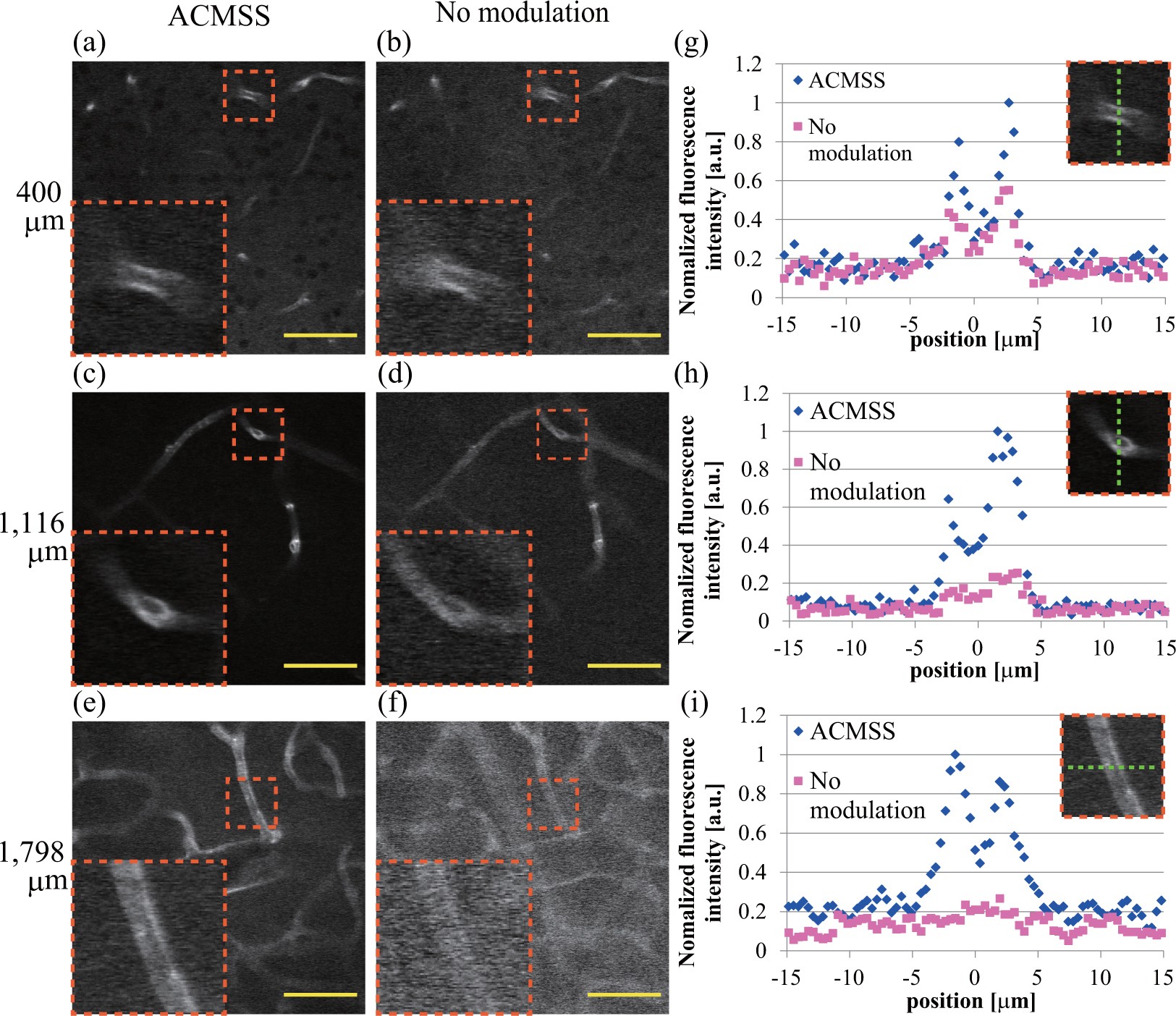

Figure 7
Observation of \(xy\) images of blood vessels in a mouse cerebrum. (a,b) \(xy\) image at an optical depth of 400 μm from the scans performed with wavefront modulation using the ACMSS and without wavefront modulation. (c,d) \(xy\) images at an optical depth of 1,116 μm. (e,f) \(xy\) images at an optical depth of 1,798 μm. Scale bar indicates 50 μm. Magnified views of the blood vessels in the orange dashed box are shown in the lower left of (a–f). (g)–(i) Fluorescence intensity of the blood vessels across the green dashed line in the orange dashed box.
