Figure 6
From: Optical Properties and Local Structure Evolution during Crystallization of Ga16Sb84 Alloy

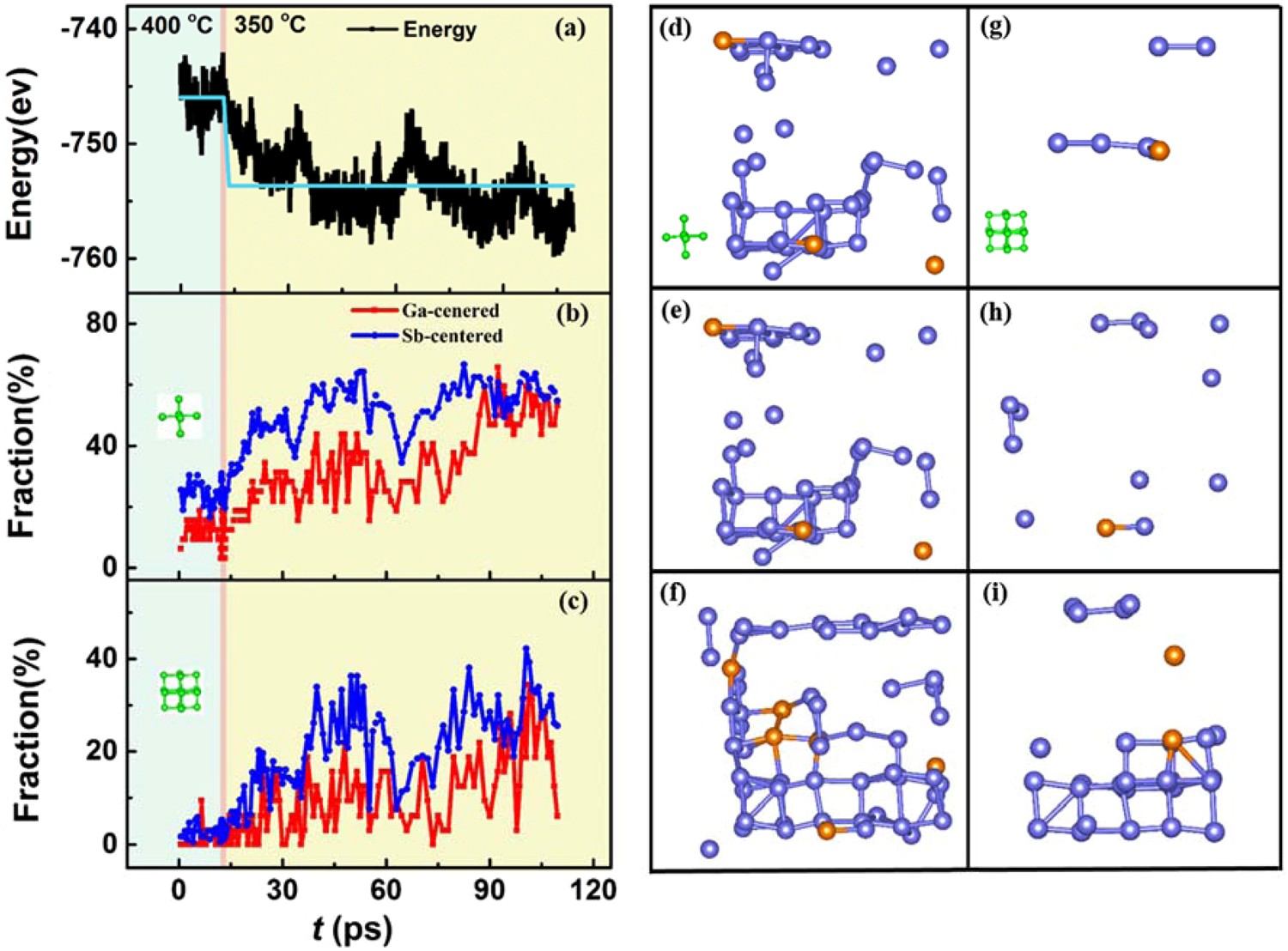

Nature of the crystallization process of Ga16Sb84. (a) Evolution of the total energy during crystallization. The light blue line is the average energy, relaxed at 400 and 350 °C. Fraction of individual cluster-template alignment in (b) 7 and (c) 19 atom templates. (d–f) Snapshots of central atoms selected from previous individual cluster-template alignment results for 7 atom template at the 12, 14.5 and 84 ps positions, respectively. (g–i) Corresponding snapshots as (d–f) for 19 atom template.
