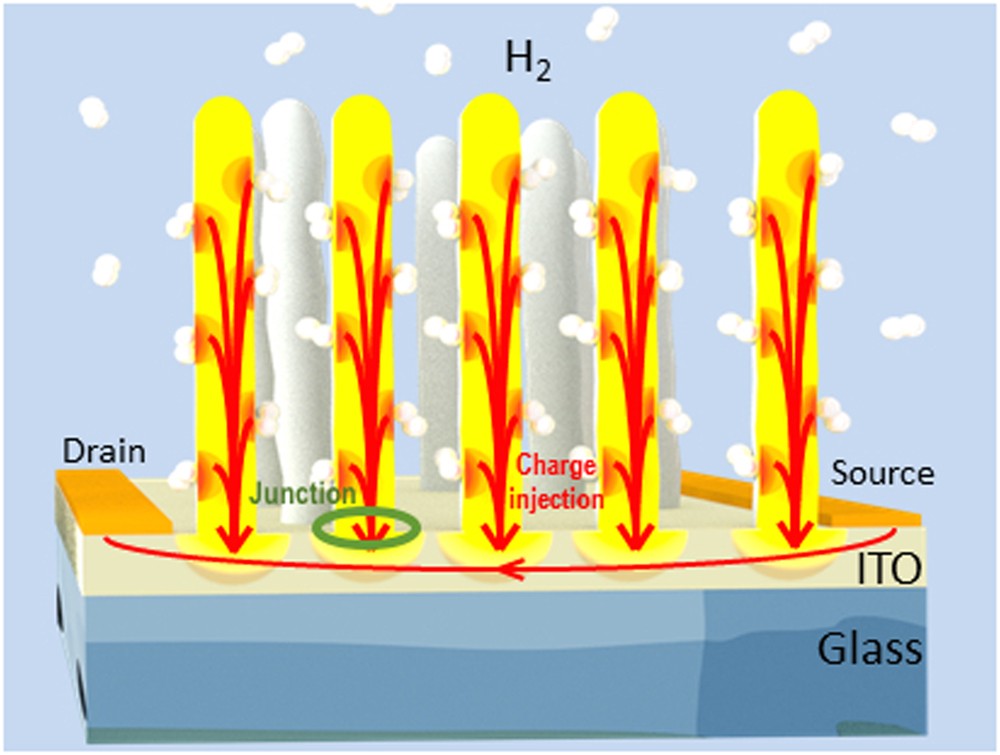

Figure 7
Schematic of the electron injection from the SnO2 nanopillars to the substrate upon the exposure to a reducing gas. The only junctions are at the nanopillar/ITO interface. Therefore, the current from source to drain does not have to pass through any junction.
