From: The genetic structure of Squalidus multimaculatus revealing the historical pattern of serial colonization on the tip of East Asian continent

Figure 2

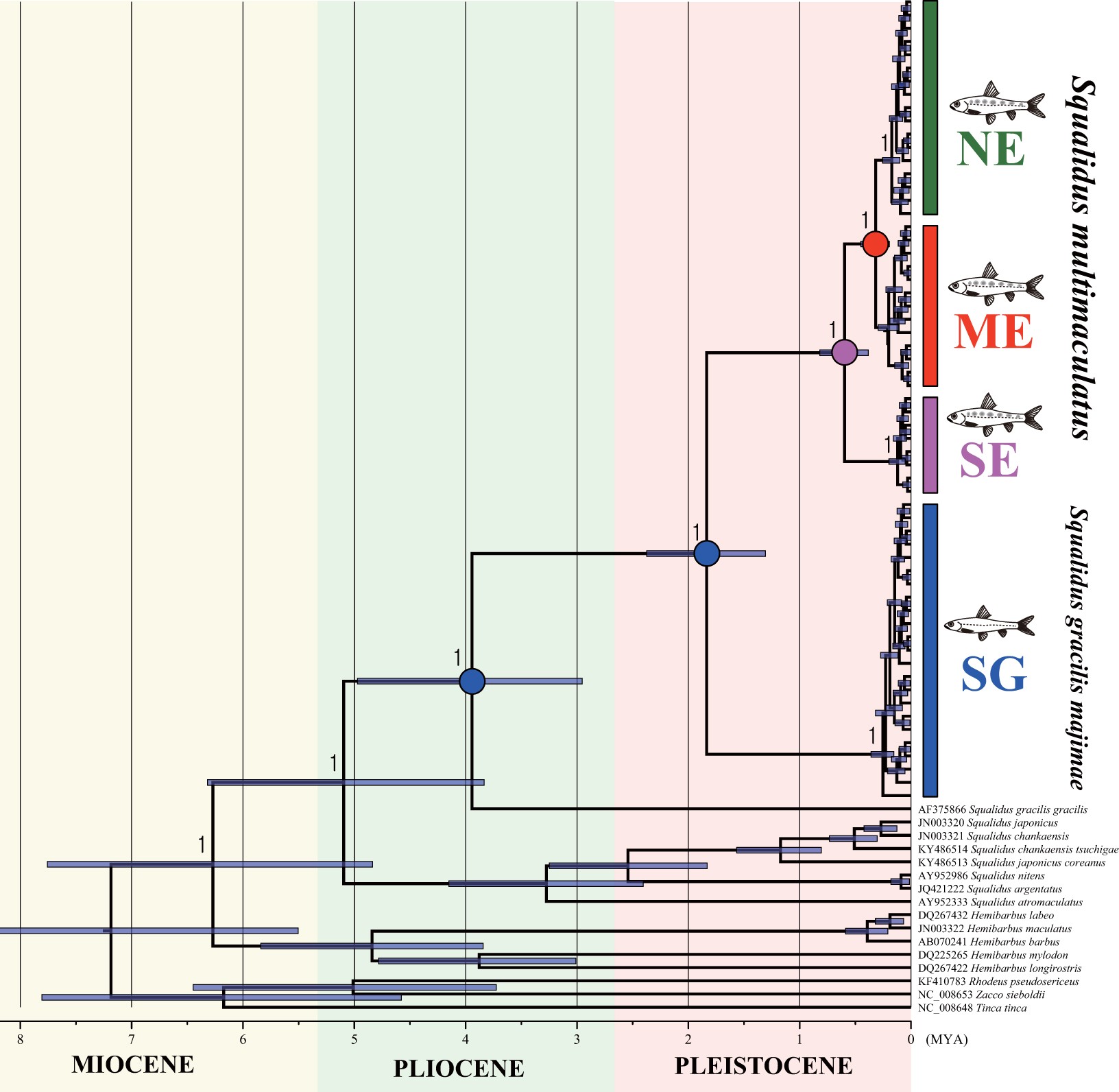

Time-calibrated Bayesian tree reconstructed by BEAST using cyt b sequences. The 95% highest posterior confidence intervals of divergence times are indicated on every major node with blue bar. Ancestral area reconstruction was also inferred based on the Bayesian Binary Markov Chain Monte-Carlo (BBM) and incorporated in the tree. The color circle of nodes showed the most likely ancestral area; blue: western Korean Peninsula, pink: Taehwa and Hoeya River (region SE), red: Hyeongsan River (region ME).
