From: Molybdenum Disulfide Surface Modification of Ultrafine-Grained Titanium for Enhanced Cellular Growth and Antibacterial Effect

Figure 2

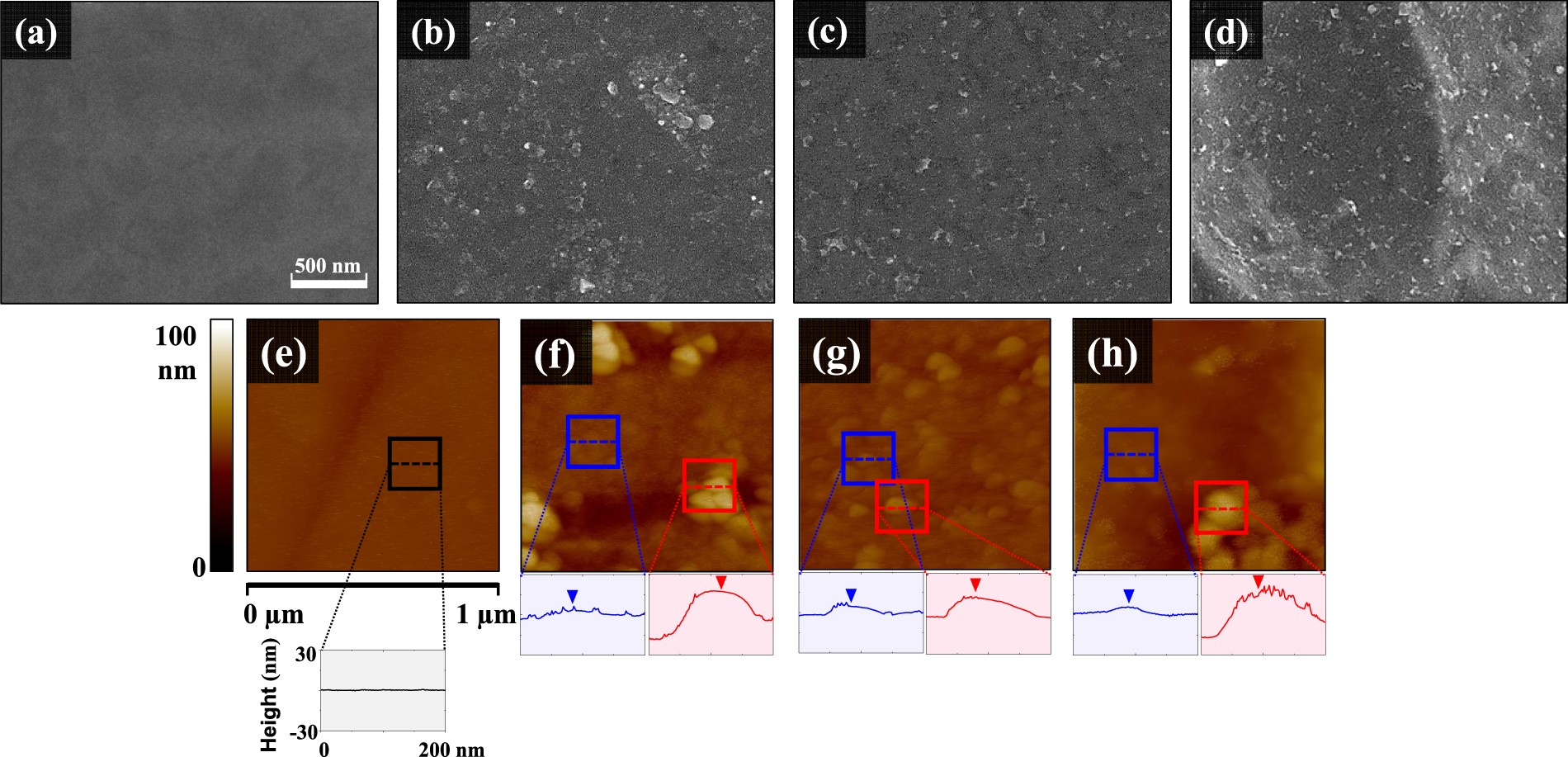

SEM micrographs and surface topographies with height profiles measured using AFM. (a) SEM images of CP Ti, (b) MS-Ti, (c) MS-ECAP, and (d) MS-eECAP surfaces. (e) AFM images of CP Ti; (f) MS-Ti; (g) MS-ECAP; and (h) MS-eECAP. The blue box represents the MoS2 nanoflakes section with uniform distribution, and the red box represents the cluster of MoS2 nanoflakes.
