Figure 5
From: Paleosecular variation recorded by Quaternary lava flows from Guadeloupe Island

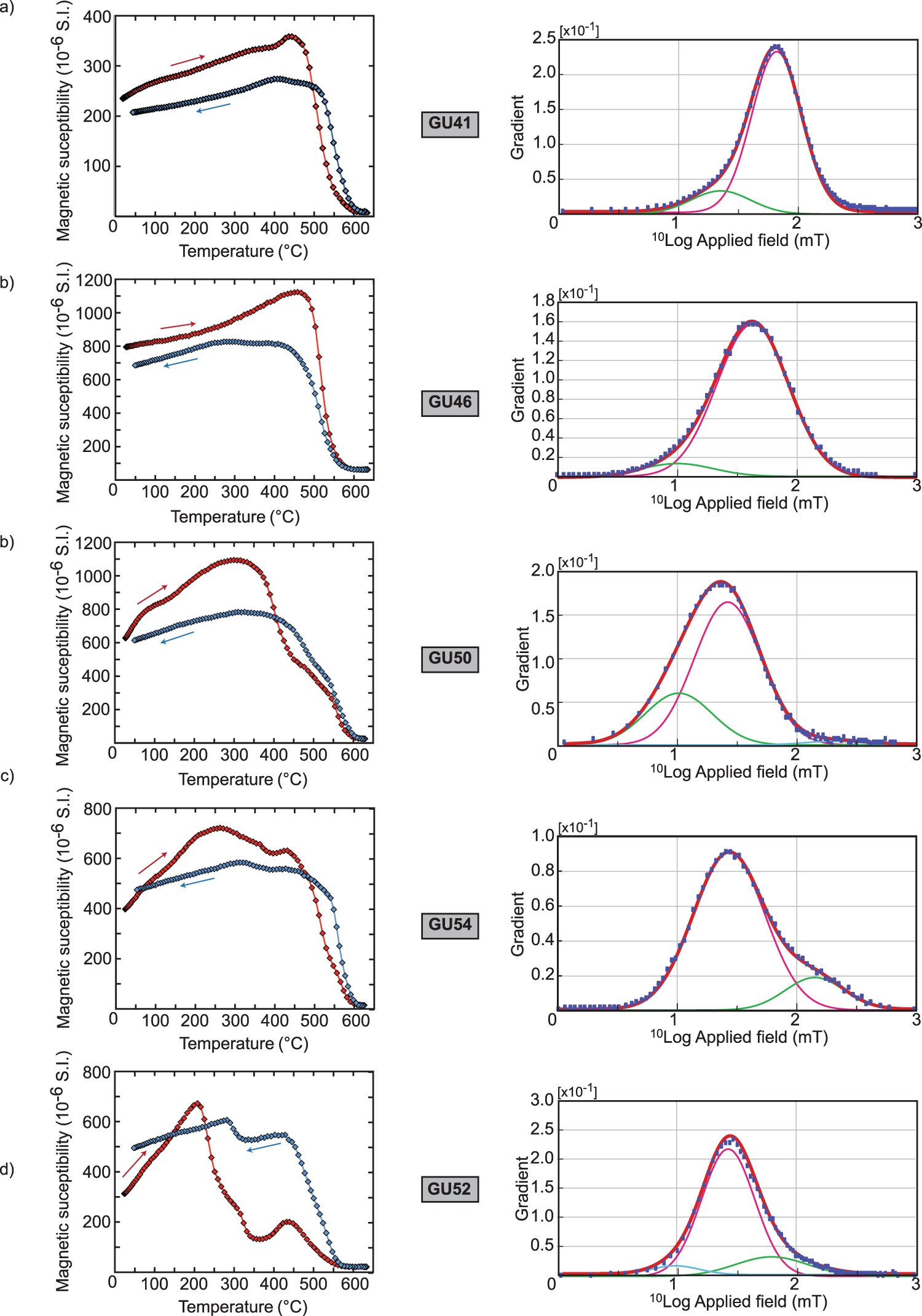

High-field rock magnetic properties. Magnetic susceptibility versus temperature (red and blue curve for heating and cooling curves, respectively), and treatment of the IRM data by the cumulative log-Gaussian (CLG) function28 for five representative shapes of samples studied here. Curves colored following the different magnetic components: main B1/2 in red, second and third in green and blue, respectively (see text for details).
