Figure 1
From: Different gaze strategies during eye versus hand tracking of a moving target

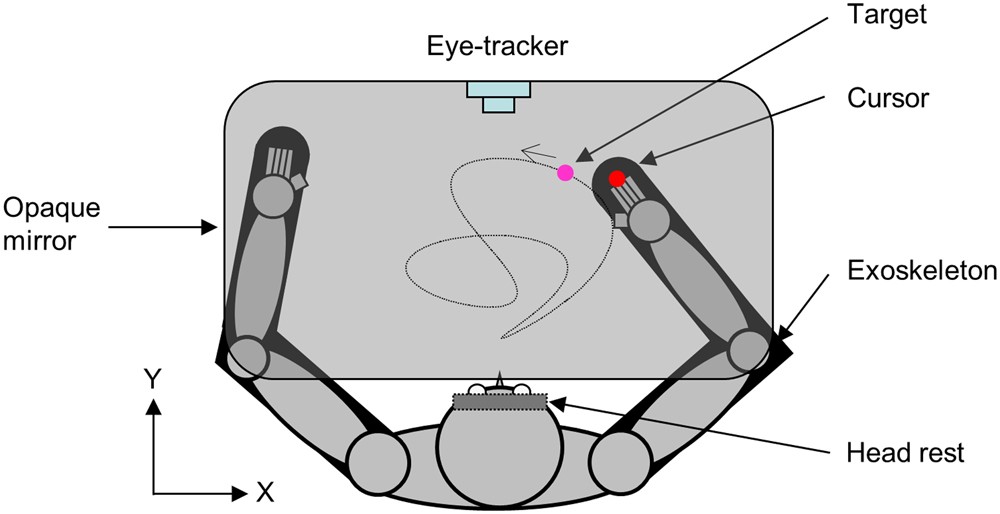

Top view of the experimental setup. Both arms of the participant were inserted into an exoskeleton. Placed above the arms, an opaque mirror blocked their view. A purple target was projected on the mirror from above and appeared at the height of the hand. The dotted line shows an example target path (not visible to the participant). During eye tracking, no cursor was displayed, both arms were immobile, and the participant had to track as accurately as possible the moving target with the eyes. During hand tracking, a red cursor representing the right index fingertip was also displayed and the participant was instructed to move his/her right arm so as to bring the cursor as close as possible to the moving target.
