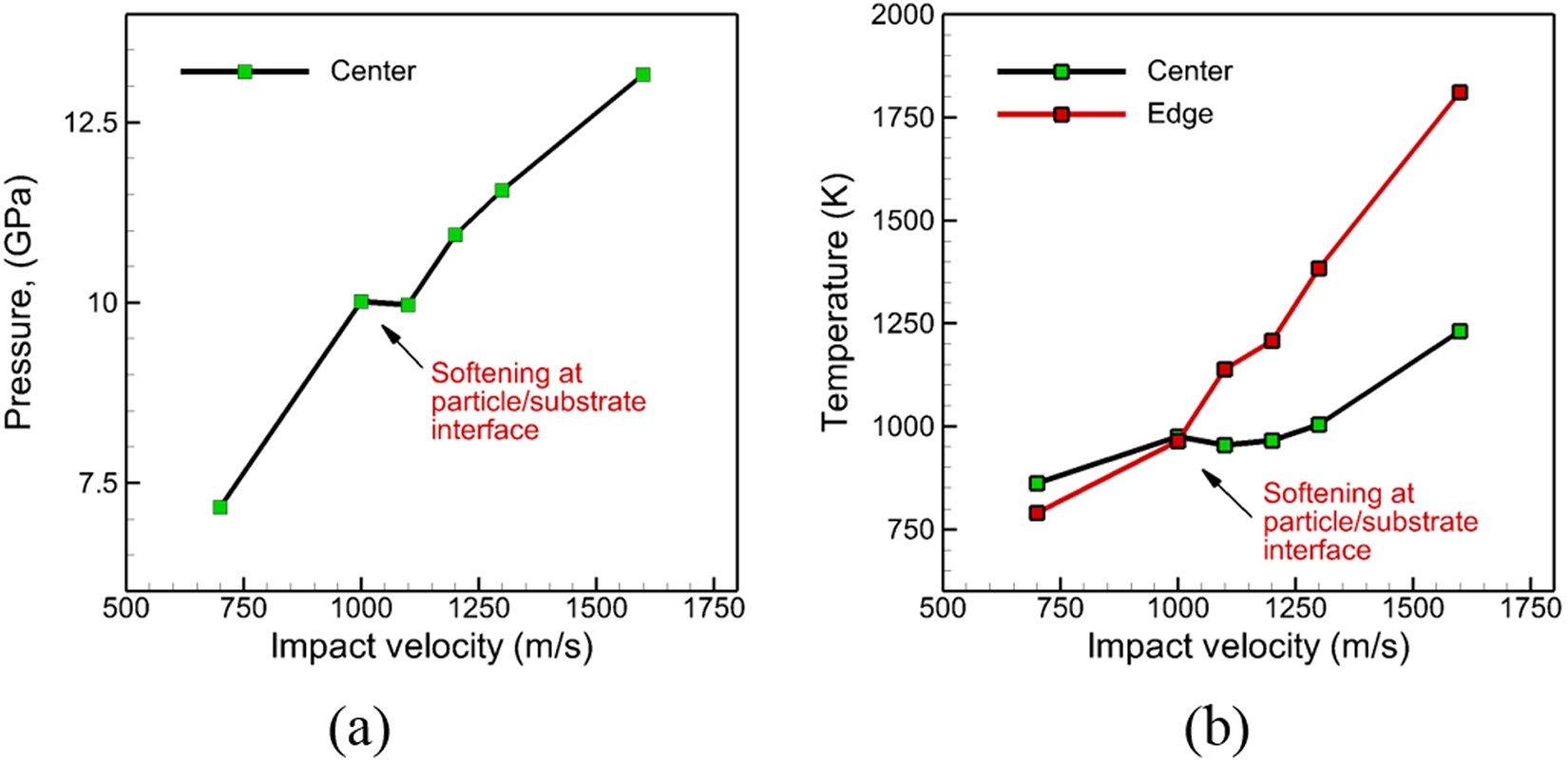

Figure 8
Plot of (a) peak pressure generated at the center of the particle/substrate interface at the location of impact, and (b) peak temperature generated at the center of the particle/substrate interface at the location of impact and at the periphery of the particle/substrate interface for different impact velocities considered here.
