Figure 8
From: Metastable phase formation of Pt-X (X = Ir, Au) thin films

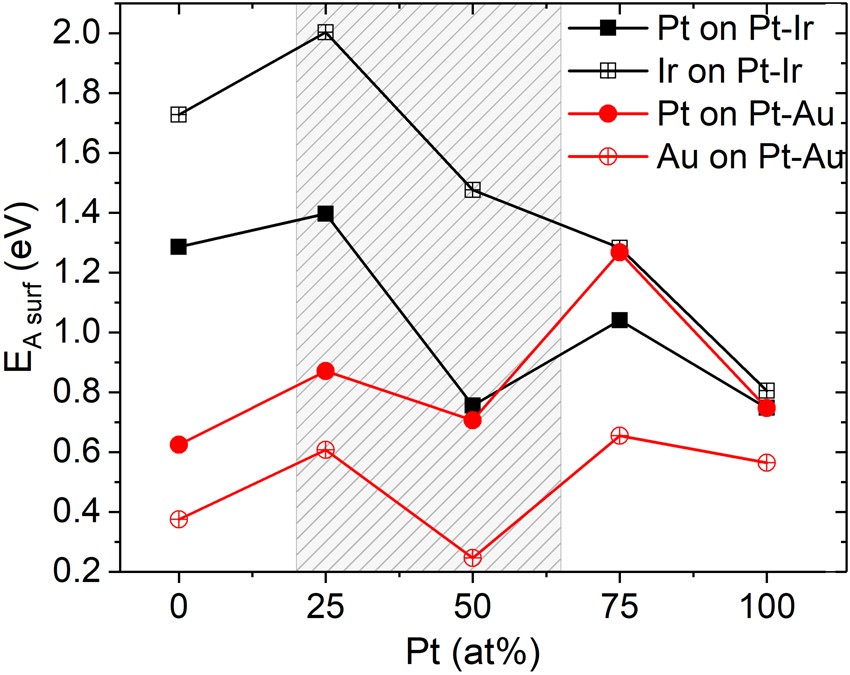

Activation energy for surface diffusion (E A surf) to reach the equilibrium state, obtained via ab initio calculations for an atom on respective Pt-Ir and Pt-Au (111) surface in <110> direction. The highlighted region depicts the experimentally investigated compositional range.
