Figure 5
From: Advances in single-scan time-encoding magnetic resonance imaging

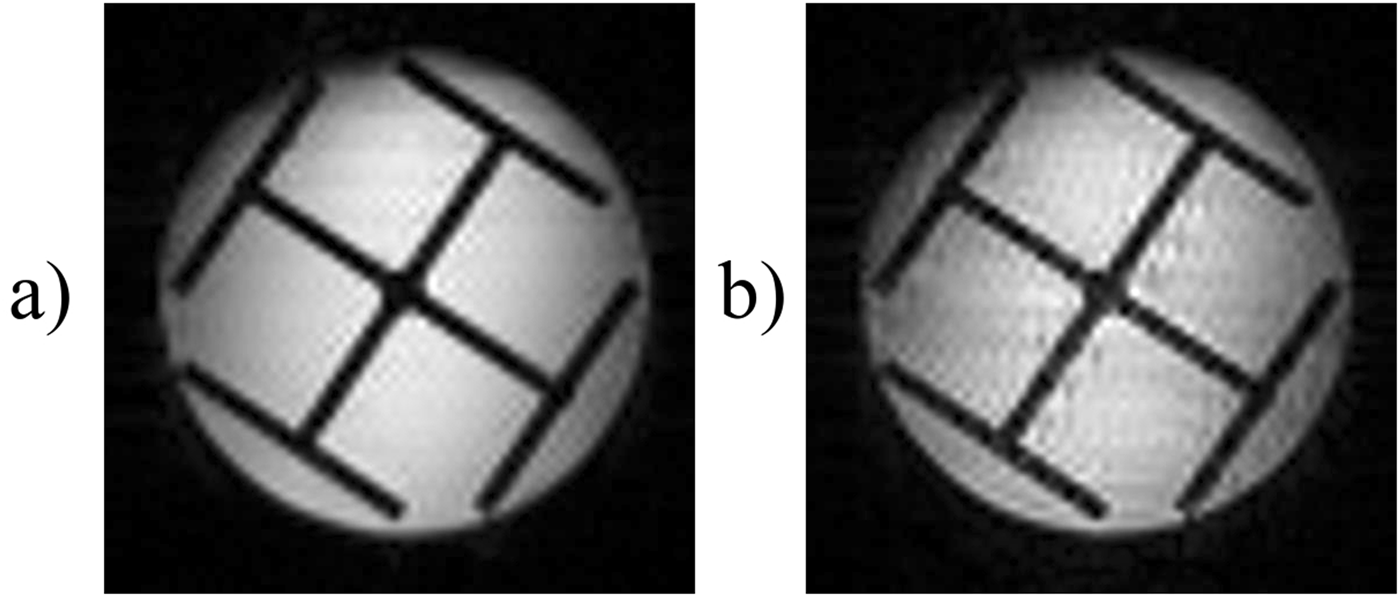

Two time-encoding images obtained using a four-fold interleaving of the excitation frequencies in the sequence of Figure 2b, with a matrix size of 64 × 64 (16 × 64 for individual scans), an FOV of 27.0 × 27.0 mm, and TE = 14.4 ms. Gaussian pulses were used for excitation in (a), and rectangular pulses in (b).
