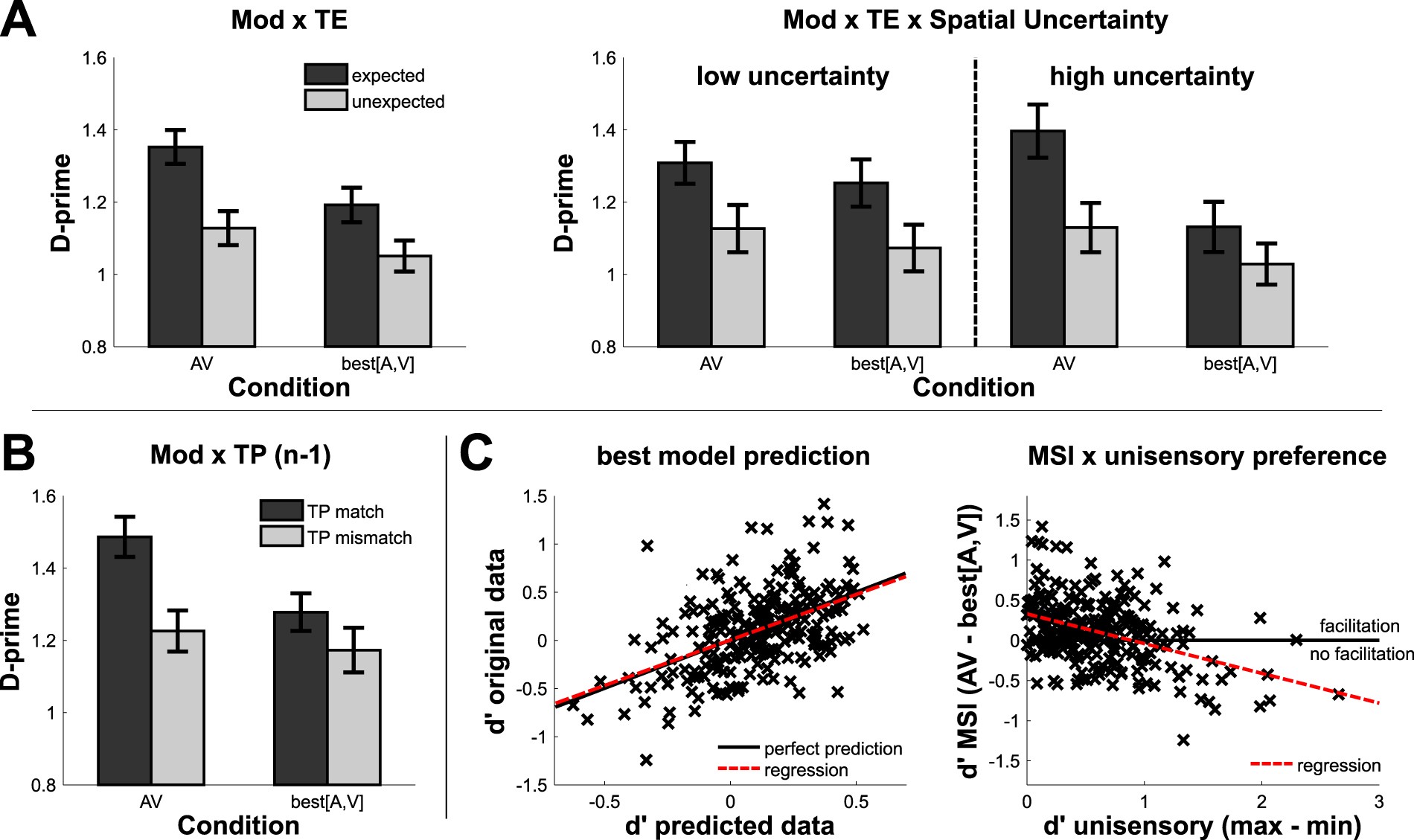

Figure 2
From: Phasic and sustained interactions of multisensory interplay and temporal expectation
Inferential and modelling results. (A) Mean dʹ values (+/−SE) of the significant interactions “modality × TE” and “modality × TE × spatial uncertainty”. dʹ values are displayed for the audiovisual (AV) vs. best unisensory conditions (best[A,V]). Expected trials are displayed in dark grey, unexpected trials in light grey. (B) Mean dʹ values for sequential effect (n – 1) interactions of “modality × TP”. Target position (TP) match trials are displayed in dark grey, TP mismatch trials in light grey. (C) Results of the d′ modelling analysis. Left: Best model prediction of individual data points (x). The black line depicts a perfect prediction and the red dotted line the regression of all data points. Right: Interaction of MSI with unisensory preference. Red dotted line is regression of all data points. Y-values above the black indicate multisensory facilitation (AV > best[A,V]). Large X-values indicate that participants strongly preferred one modality (max[A,V]≫min[A,V]).
