Figure 6 | Scientific Reports

Figure 6

From: The serrulatane diterpenoid natural products RAD288 and RAD289 stimulate properties of olfactory ensheathing cells useful for neural repair therapies

Figure 6

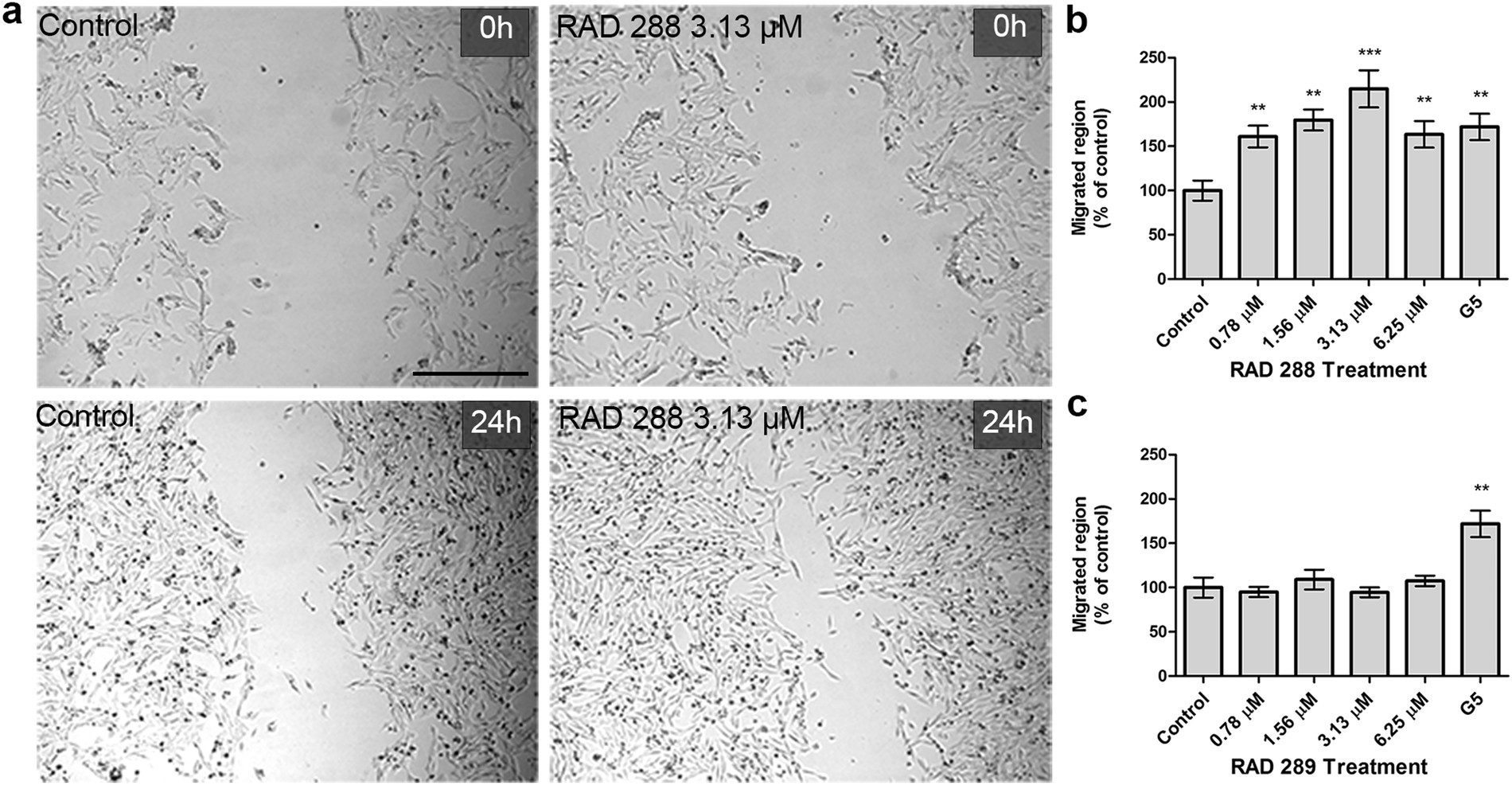

RAD288 enhances cell migration of mOECs in vitro. (a) Cell migration was detected using wound scratch assay. Representative wound closure images after drug exposure. Scale bar = 500 µm. (b) Migrated region after treatments with different concentrations of RAD288 expressed as the percentage of control. (c) Migrated region after treatments with different concentrations of RAD289 expressed as the percentage of control. Values are presented as means ± SEM of five independent experiments. ***p < 0.001, **p < 0.01, Mann-Whitney U test.
