Figure 3 | Scientific Reports

Figure 3

From: Soluble interleukin-27 receptor alpha is a valuable prognostic biomarker for acute graft-versus-host disease after allogeneic haematopoietic stem cell transplantation

Figure 3

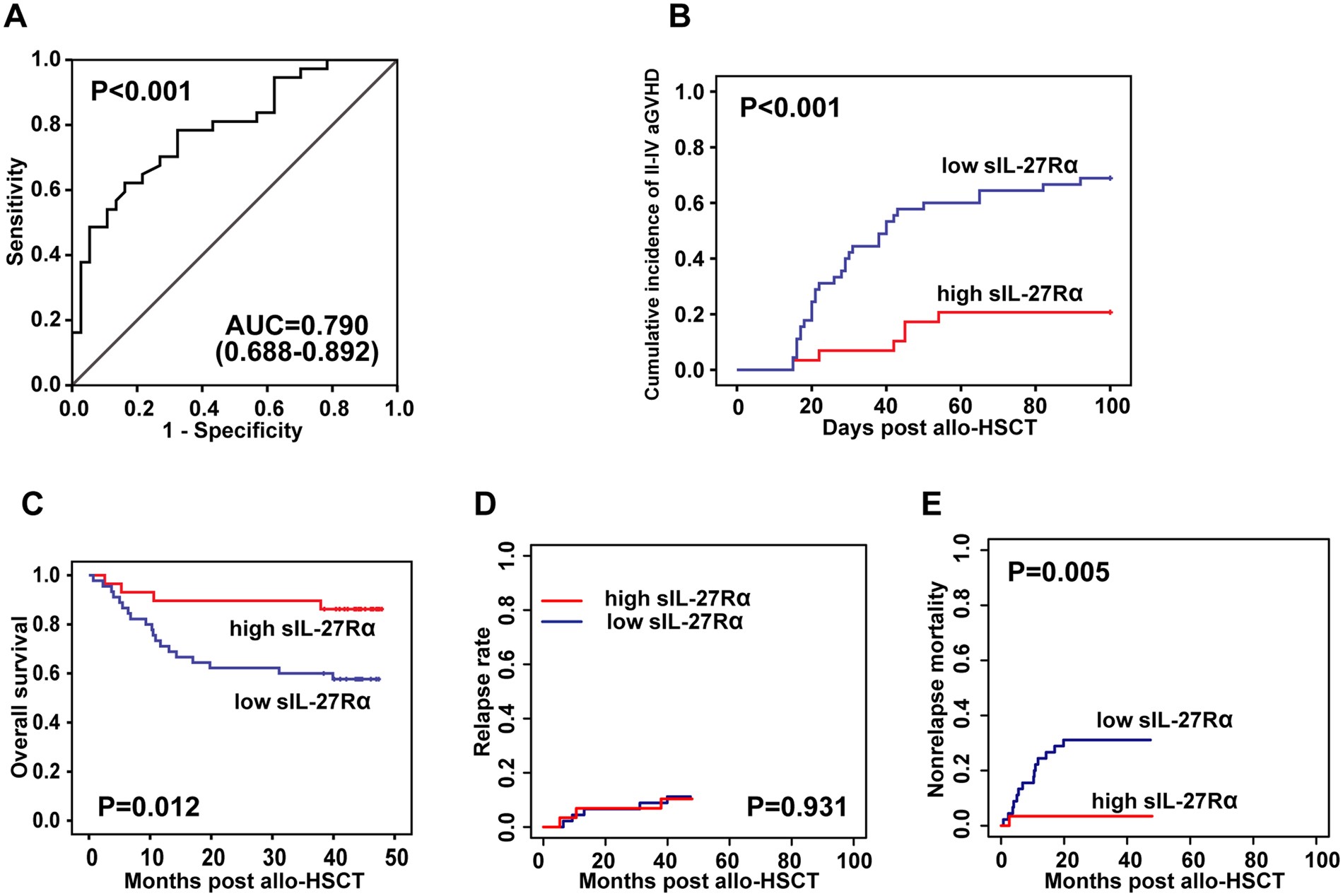

sIL-27Rα as an independent prognostic aGVHD biomarker validated in an independent cohort of 80 patients. (A) The area under the ROC curve (AUC) was 0.790 (95% CI 0.688–0.892, P < 0.001) on the day of neutrophil engraftment, using 59.4 ng/ml as the cut-off value. (B) The cumulative incidence of grade II–IV aGVHD was significantly lower in patients with high sIL-27Rα levels by Gray’s test (P < 0.001). (C) Patients with high sIL-27Rα levels showed favourable overall survival compared with patients with low sIL-27Rα levels on Kaplan-Meier survival analysis by log rank test (P = 0.012). (D,E) Patients with high sIL-27Rα levels had similar relapse rates (CIR) and lower non-relapse mortality (NRM) than did patients with low sIL-27Rα levels by Gray’s test (P = 0.0931, P = 0.005, respectively).
