Figure 6 | Scientific Reports

Figure 6

From: Meta-proteomics of rumen microbiota indicates niche compartmentalisation and functional dominance in a limited number of metabolic pathways between abundant bacteria

Figure 6

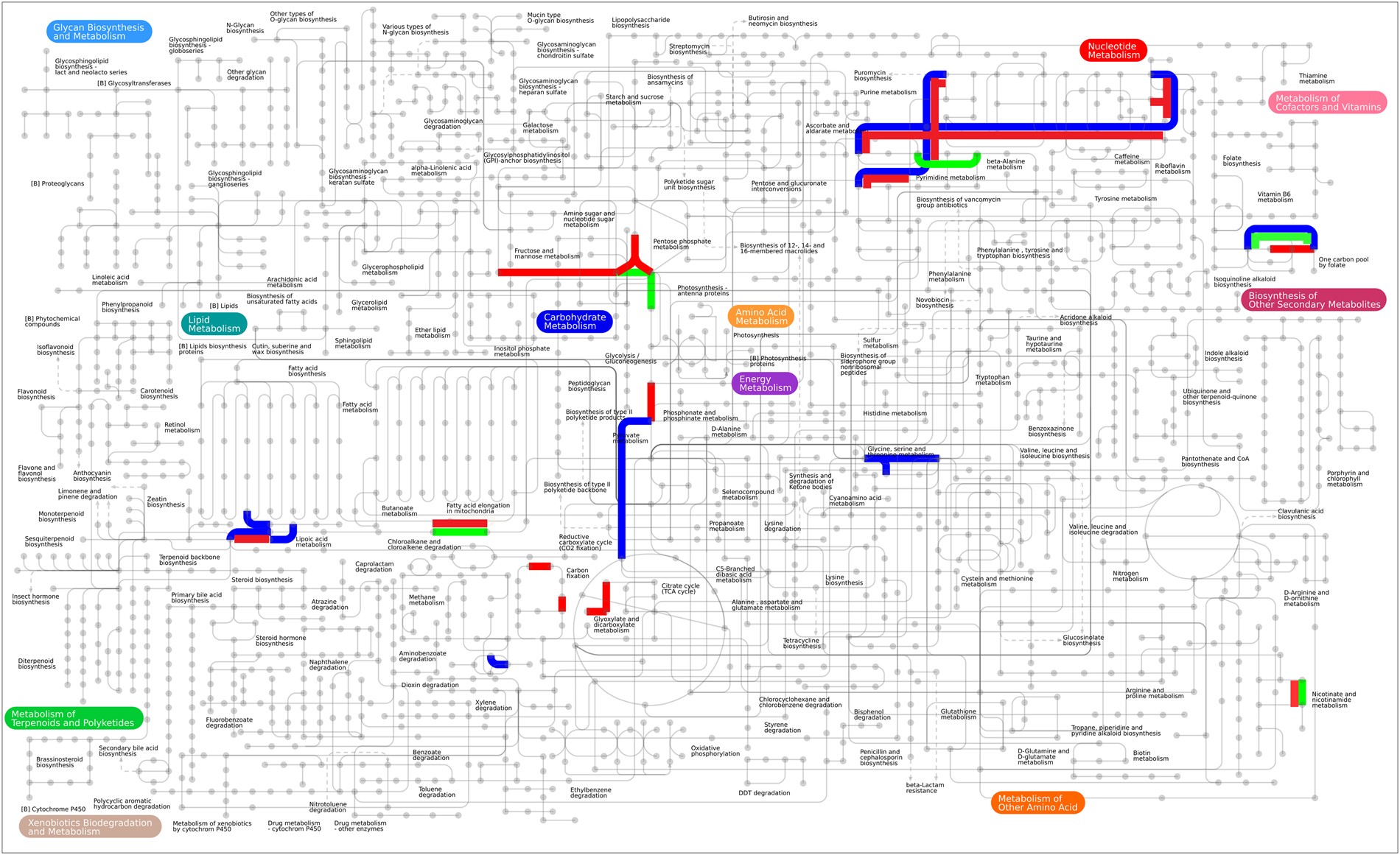

KEGG map (www.kegg.jp) showing the main metabolic pathways belonging to the dominant taxa observed in this study (Fig. 4). The three main phyla are represented as follows, Bacteriodetes shown in blue, Proteobacteria in green, Firmicutes in red. Differentiation of pathways can be observed between phyla.
