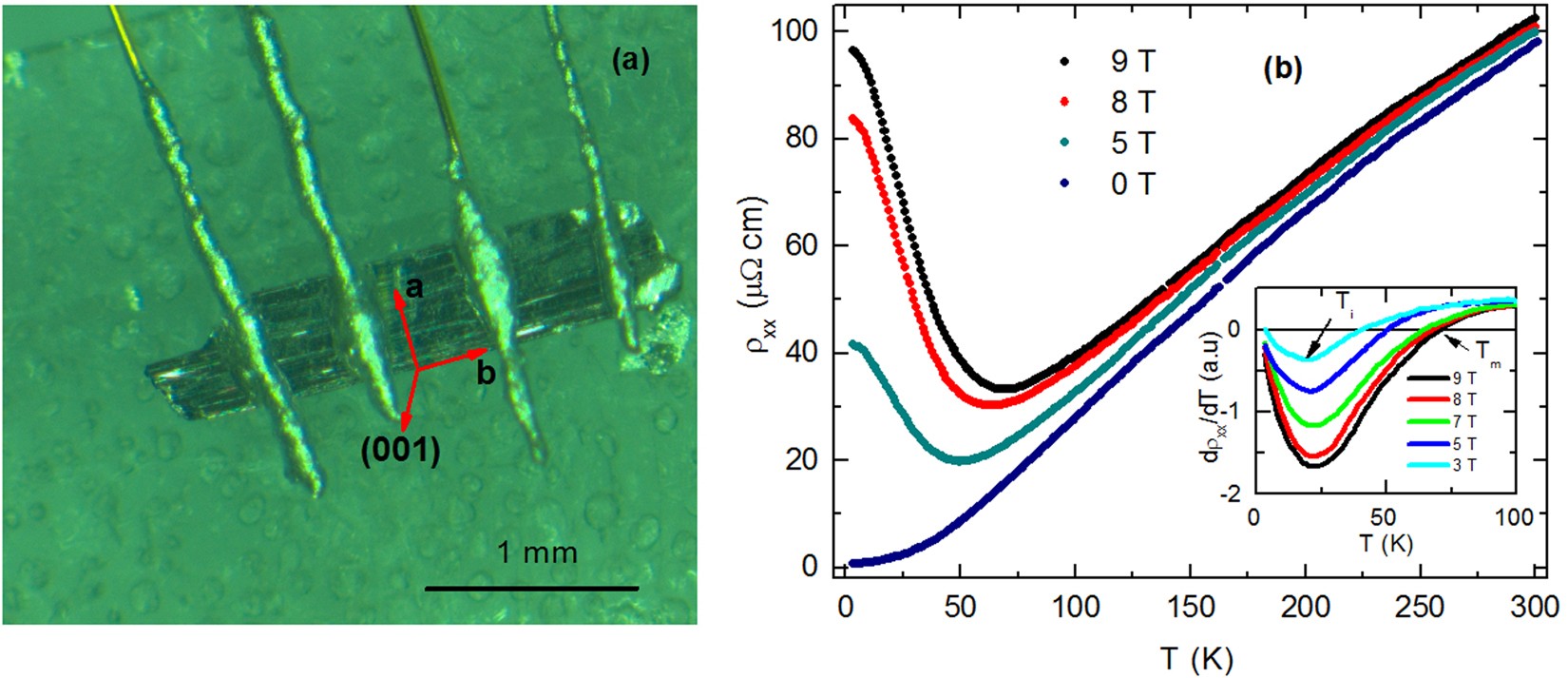

Figure 3
From: Anisotropic transverse magnetoresistance and Fermi surface in TaSb2
(a) Typical morphology and different crystallographic directions of a representative single crystal of TaSb2, and (b) Temperature dependence of resistivity (ρxx) both in presence and absence of external magnetic field. Current (I) is applied along b-axis and magnetic field (B) is perpendicular to the ab plane. Inset shows the first order derivative of ρxx with respect to T. Metal- to semiconductor-like crossover temperature is named as Tm, and Ti is the temperature for the inflection point of ρxx(T).
