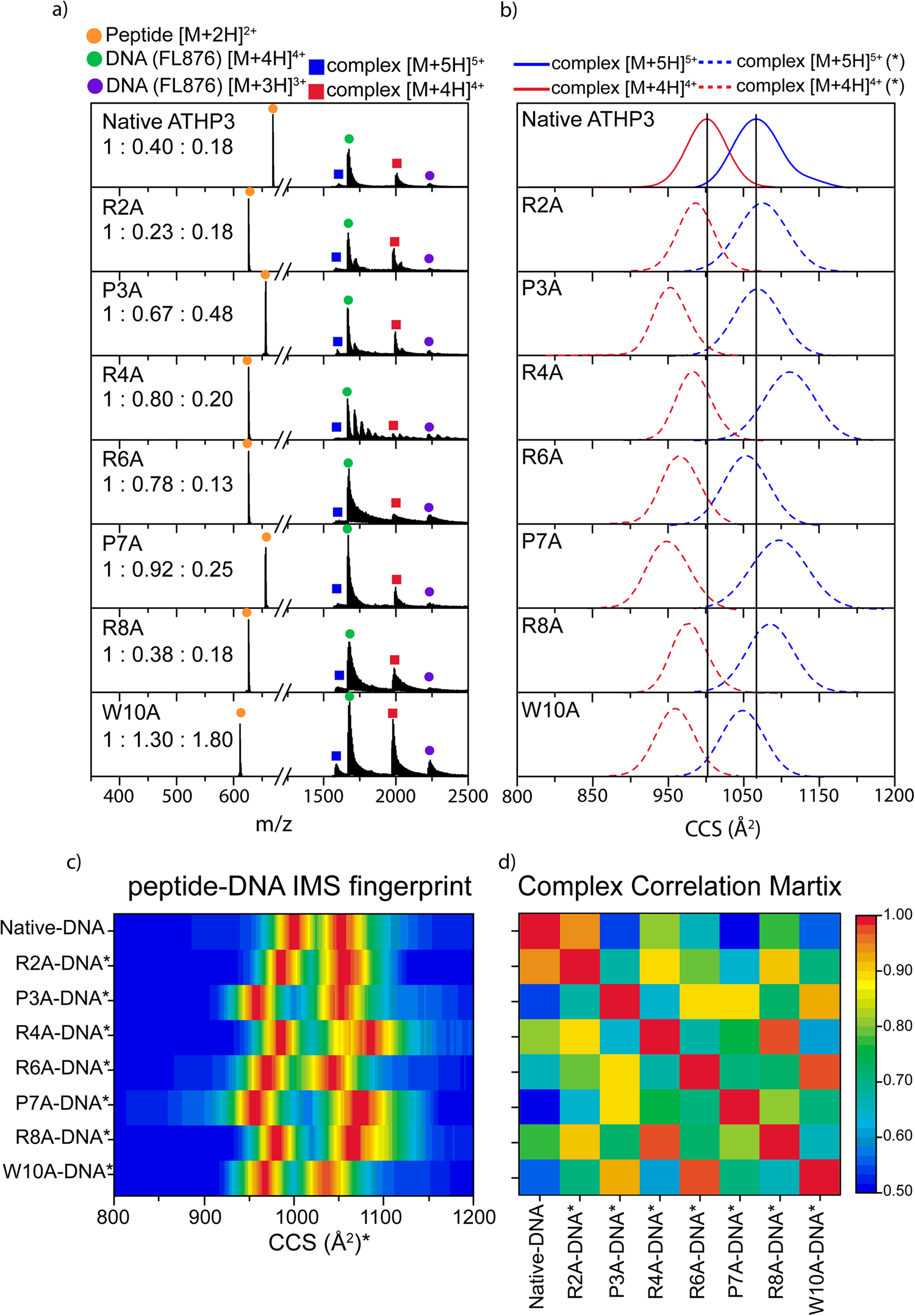

Figure 2

Typical mass spectra (a) and ‘corrected’ IMS profiles (b) of the native and substituted ATHP3: DNA complexes. The IMS profile fingerprint (c) of the complexes was used to generate a correlation matrix (d). Peptide: DNA: complex ratios are reported in the inset in (a).
