From: Global investigation of an engineered nitrogen-fixing Escherichia coli strain reveals regulatory coupling between host and heterologous nitrogen-fixation genes

Figure 2

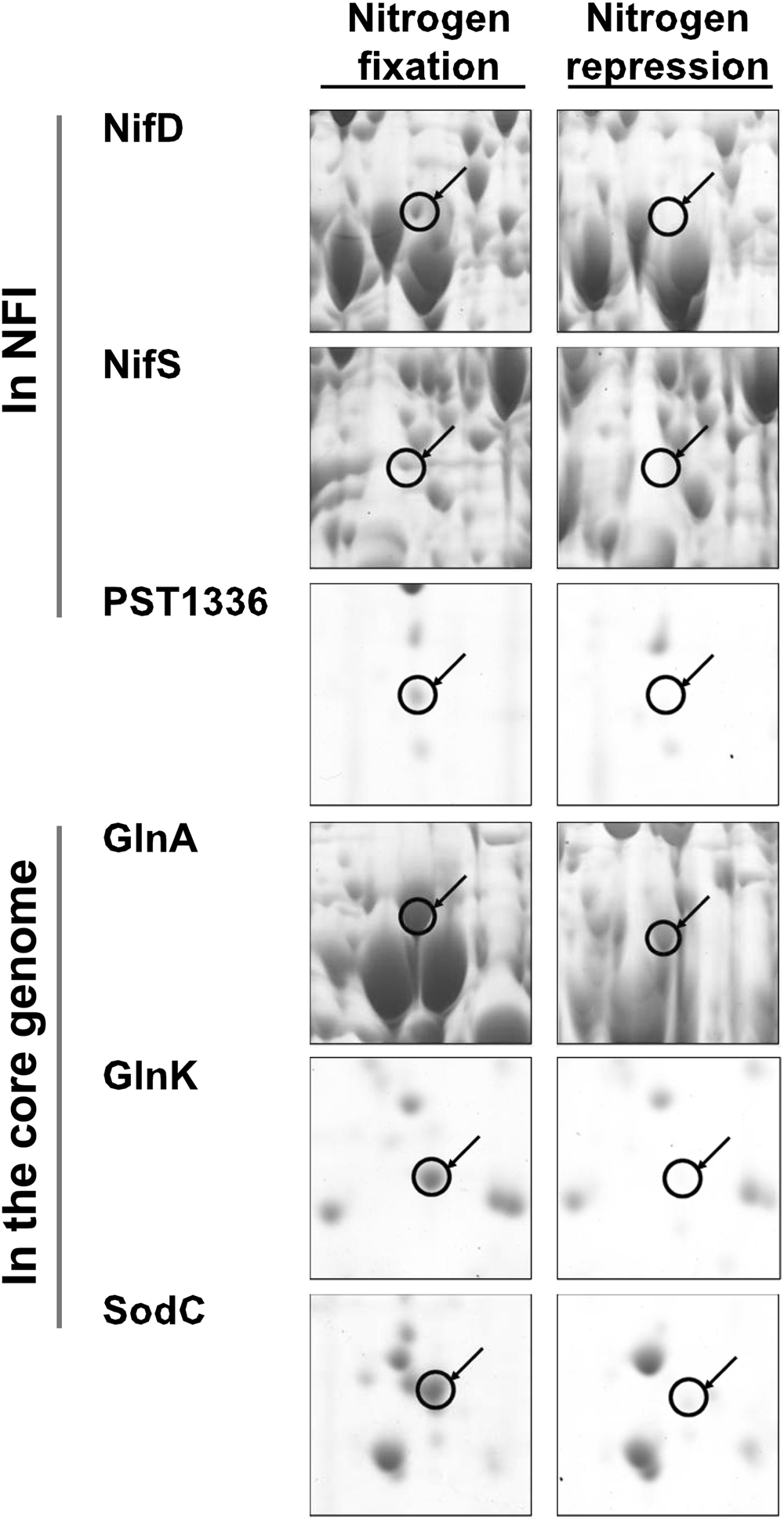

Enhanced expression of nitrogen fixation related proteins in recombinant E. coli EN-01 under nitrogen-fixation conditions. Magnified regions of 2-D gel images were sliced from Supplementary Fig. S1. Protein spots of interest are indicated with circles with the corresponding protein names pointed out on the left. Proteins were identified by MALDITOF-MS analysis.
