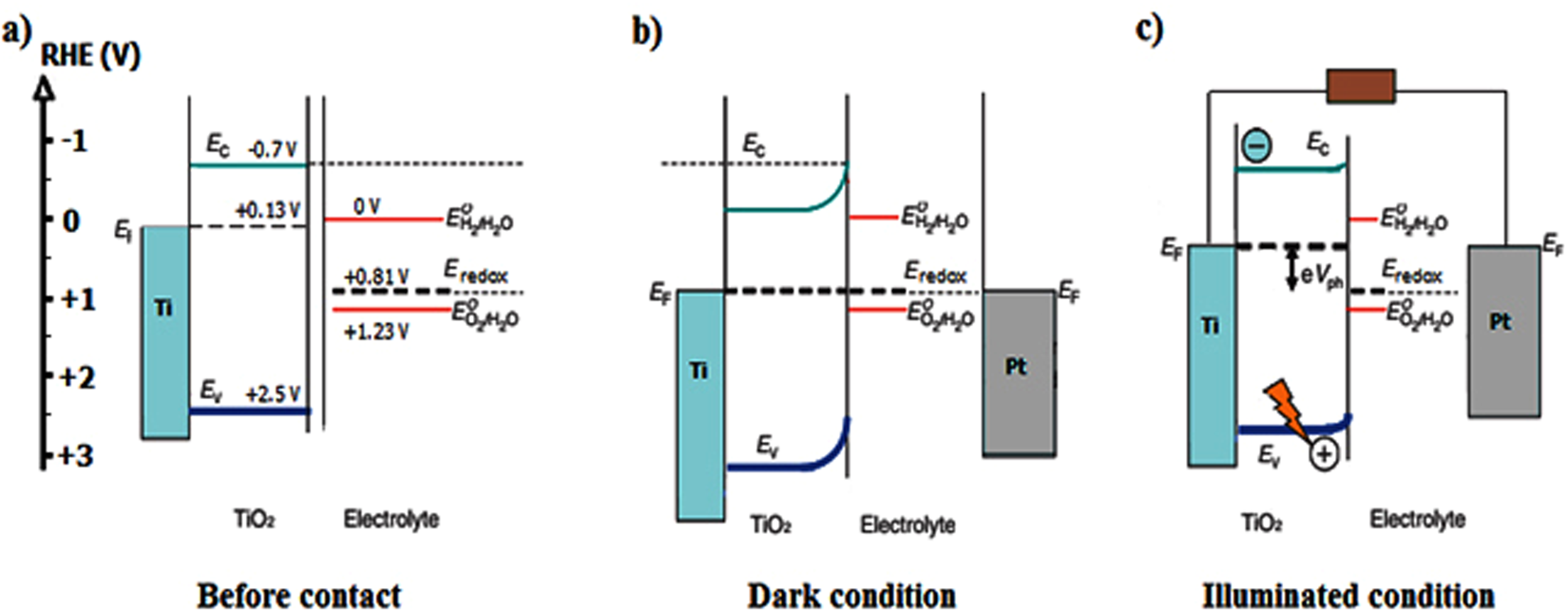

Figure 5

The band structure profile of a TNA electrode and the electrolyte (KOH 0.5 M) (a) before contact, (b) Equilibrium after contact in dark condition, (c) after over band-gap illumination in open-circuit condition. The magnitudes of potentials were achieved from OCP experiment.
