Figure 6 | Scientific Reports

Figure 6

From: Single crystal growth, optical absorption and luminescence properties under VUV-UV synchrotron excitation of type III Ce3+:KGd(PO3)4, a promising scintillator material

Figure 6The alternative text for this image may have been generated using AI.

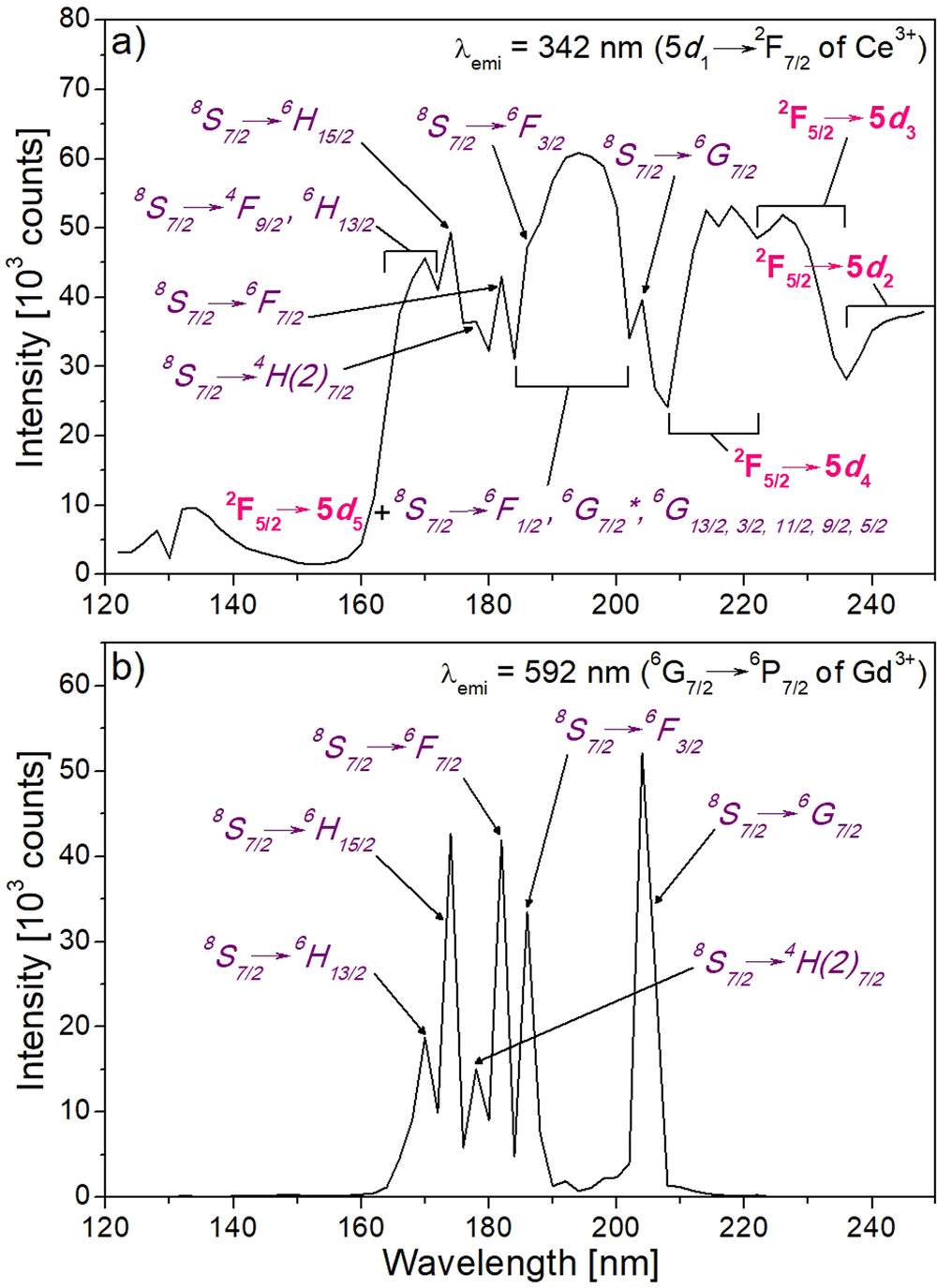

Excitation spectra of KCe0.019Gd0.981(PO3)4 for the emission wavelengths of (a) 342 nm (5d1→2F7/2 of Ce3+) and (b) 592 nm (6G7/2→6P7/2 of Gd3+). Labels in purple indicate the transitions of Gd3+ and labels in pink those of Ce3+.
