Figure 1

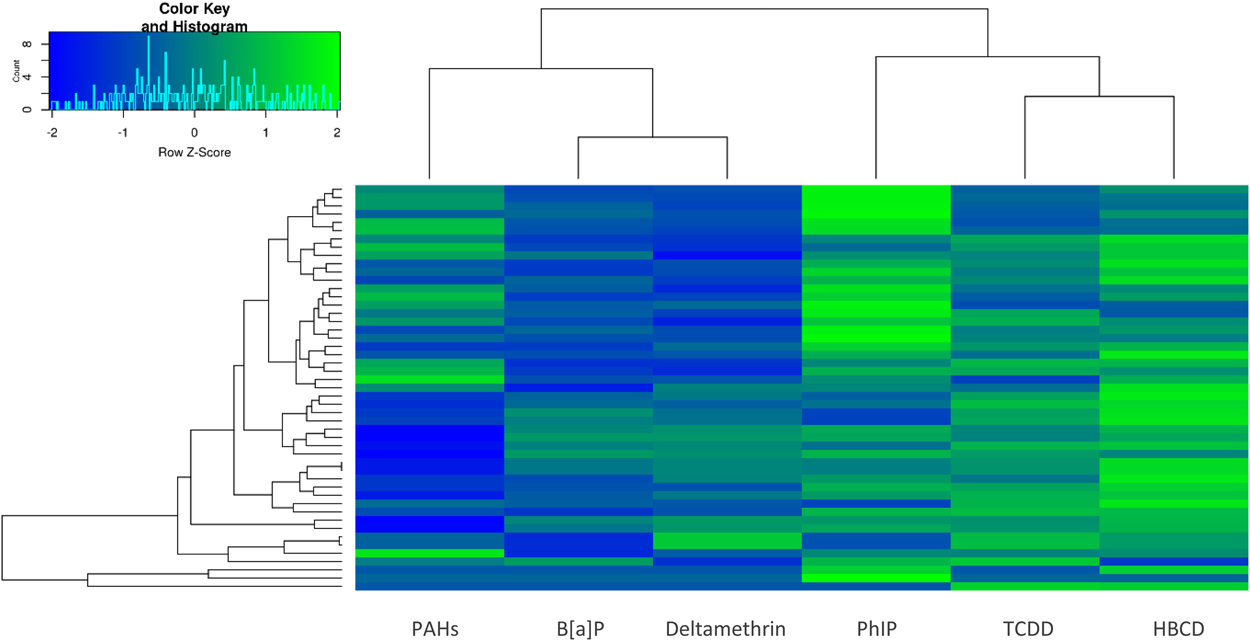

Transcript levels related to microbial GO slim terms that were up and downregulated after the 24 hr of pollutant exposure. Analysis was performed on the pooled rRNA-depleted RNA arising from five technical replicates. Variations are expressed as the Z-Score. Lines represent GO slim terms, columns represent pollutant samples.
