Figure 4 | Scientific Reports

Figure 4

From: Biochemical and structural characterization of a mannose binding jacalin-related lectin with two-sugar binding sites from pineapple (Ananas comosus) stem

Figure 4

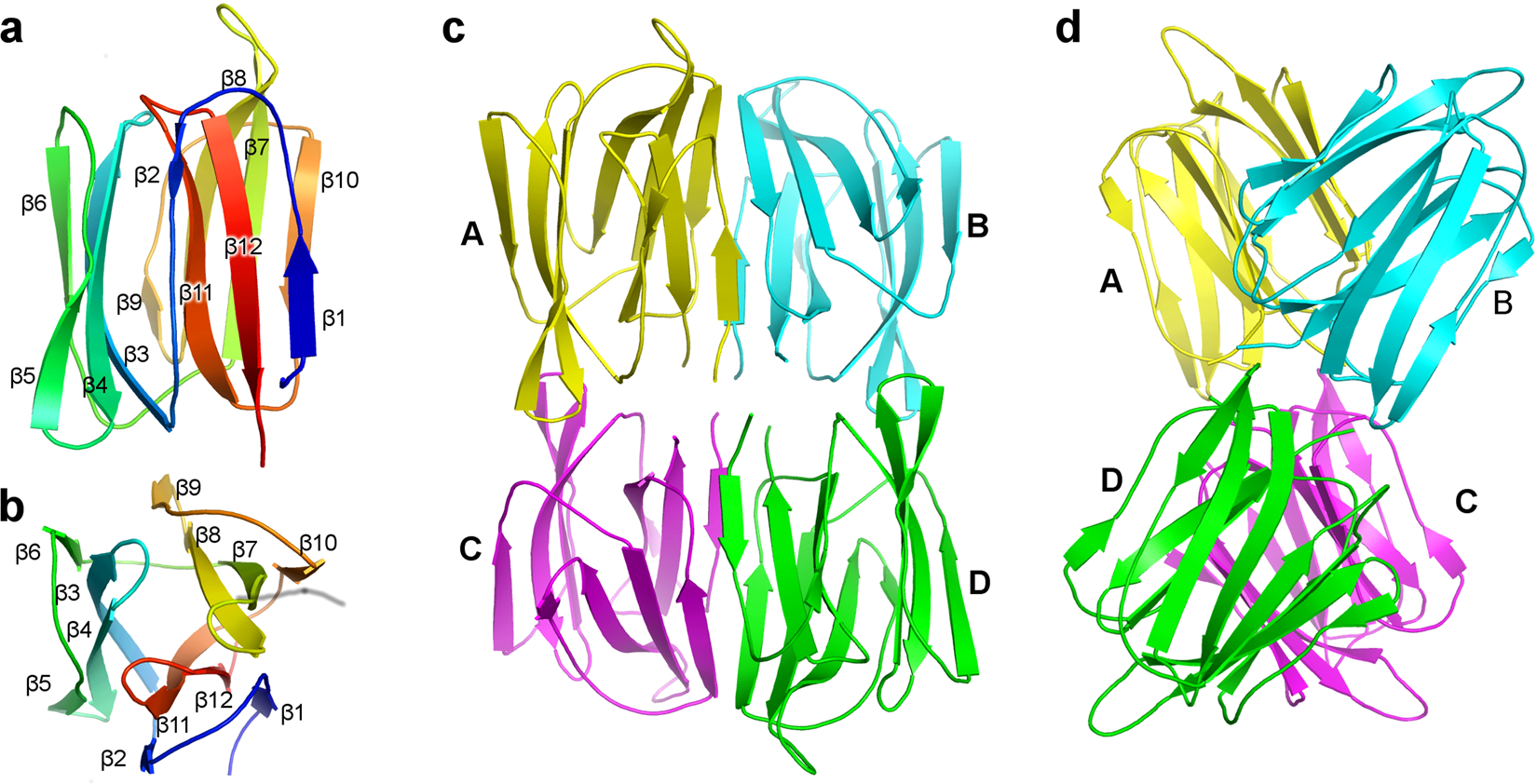

Overall fold of AcmJRL. (a) One monomer of AcmJRL is shown in cartoon representation with rainbow coloring from the blue N-terminus to the red C-terminus. The twelve β-strands are numbered. (b) Same as (a) with a 90° rotation around the horizontal axis. The three Greek key (β1–2 + β11–12; β3–6; β7–10) composing this fold are clearly separated. (c) Cartoon representation of the AcmJRL tetramer present in the crystal. (d) Same as (c) with a 90° rotation around the vertical axis.
