From: Overexpression of Tisochrysis lutea Akd1 identifies a key cold-induced alkenone desaturase enzyme

Figure 2

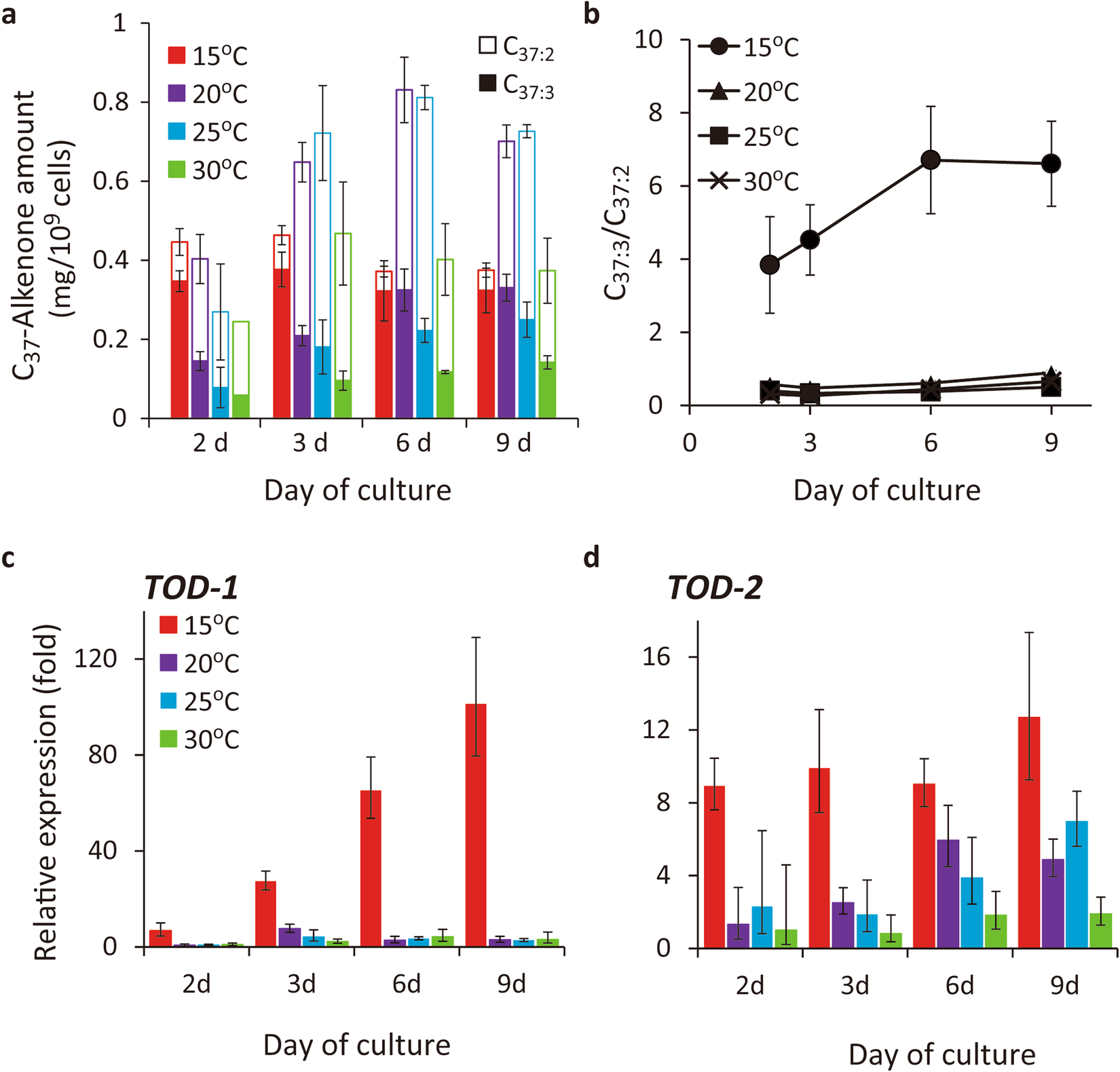

Temperature-dependent changes in alkenone production, unsaturation status, and expression of alkenone desaturase candidate genes during culture in the wild type of Tisochrysis lutea. (a) Total C37-alkenone contents. (b) C37:3/C37:2 ratio. Data: mean ± s.d. (n = 4) except on day 2 at 30 °C (n = 2). (c,d) Relative expression of TOD-1 (c) and -2 (d), respectively. The values are normalised to that at 30 °C on day 2 for each gene.
