Figure 6
From: Higher visual responses in the temporal cortex of mice

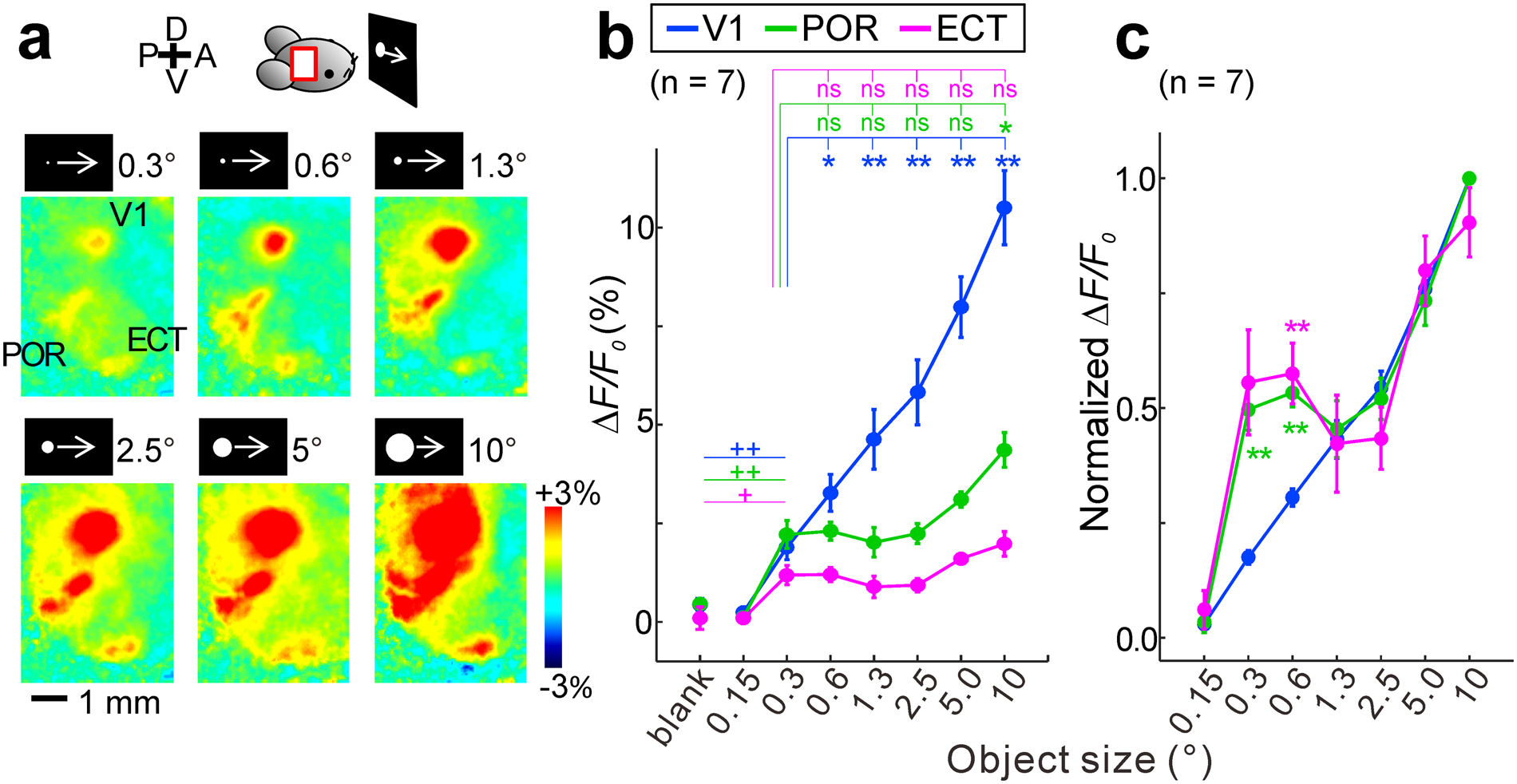

Response amplitudes to bright moving discs of various sizes. (a) Responses to bright moving discs with a diameter between 0.3° and 10°. (b) Response amplitudes and diameters of the bright moving discs. Circular ROIs (diameter: 0.3 mm or nine pixels) were used to measure the amplitudes. A two-way ANOVA showed significant effects of stimulus type, cortical area type and their interaction (p < 0.0001). Significant responses were found in response to a moving disc at 0.3° (++p < 0.01, +p < 0.05, the Mann-Whitney U test with Holm’s correction). No significant difference was found between 0.3° and 5° within the POR and ECT (**p < 0.01, *p < 0.05, the Mann-Whitney U test, n = 7). (c) Response amplitudes normalized by the maximum amplitude in each area. A two-way ANOVA showed significant effects of stimulus type (p < 0.0001), cortical area type (p = 0.0161) and their interaction (p = 0.0004). The Mann-Whitney U test with Holm’s correction detected significant differences in the POR and ECT compared with the values in the V1 (**p < 0.01, n = 7).
