Figure 7

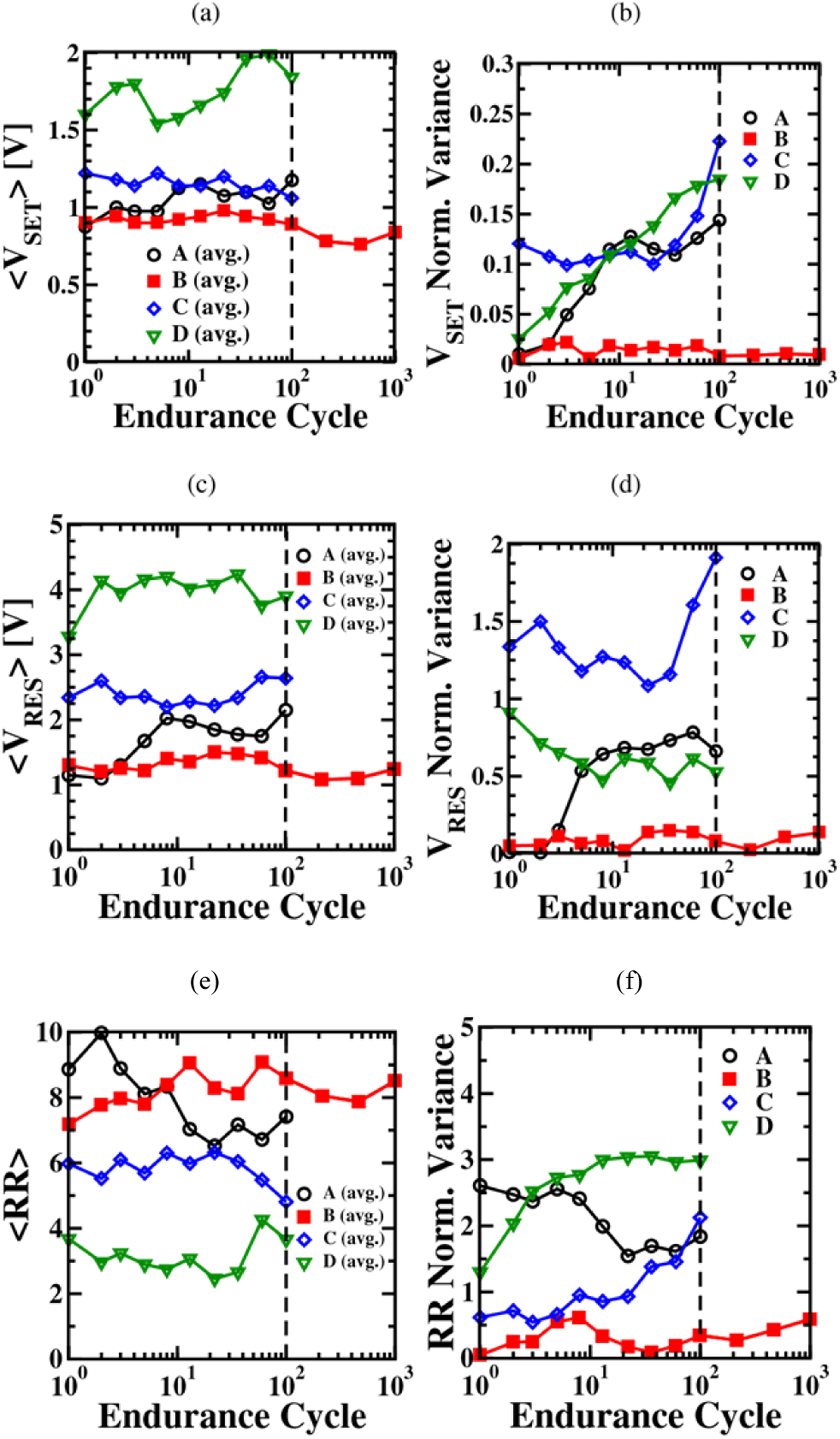

Mean V_SET (a) and V_RES (c) values and their normalized variances (b), (d) evaluated from the IV characteristics of 20 memristive cells processed by the variation A-D as function of programming cycles. The evolution of the average resistance ratio values RR and the normalized variance of RR as function of cycles are illustrated in (e) and (f).
