Figure 9

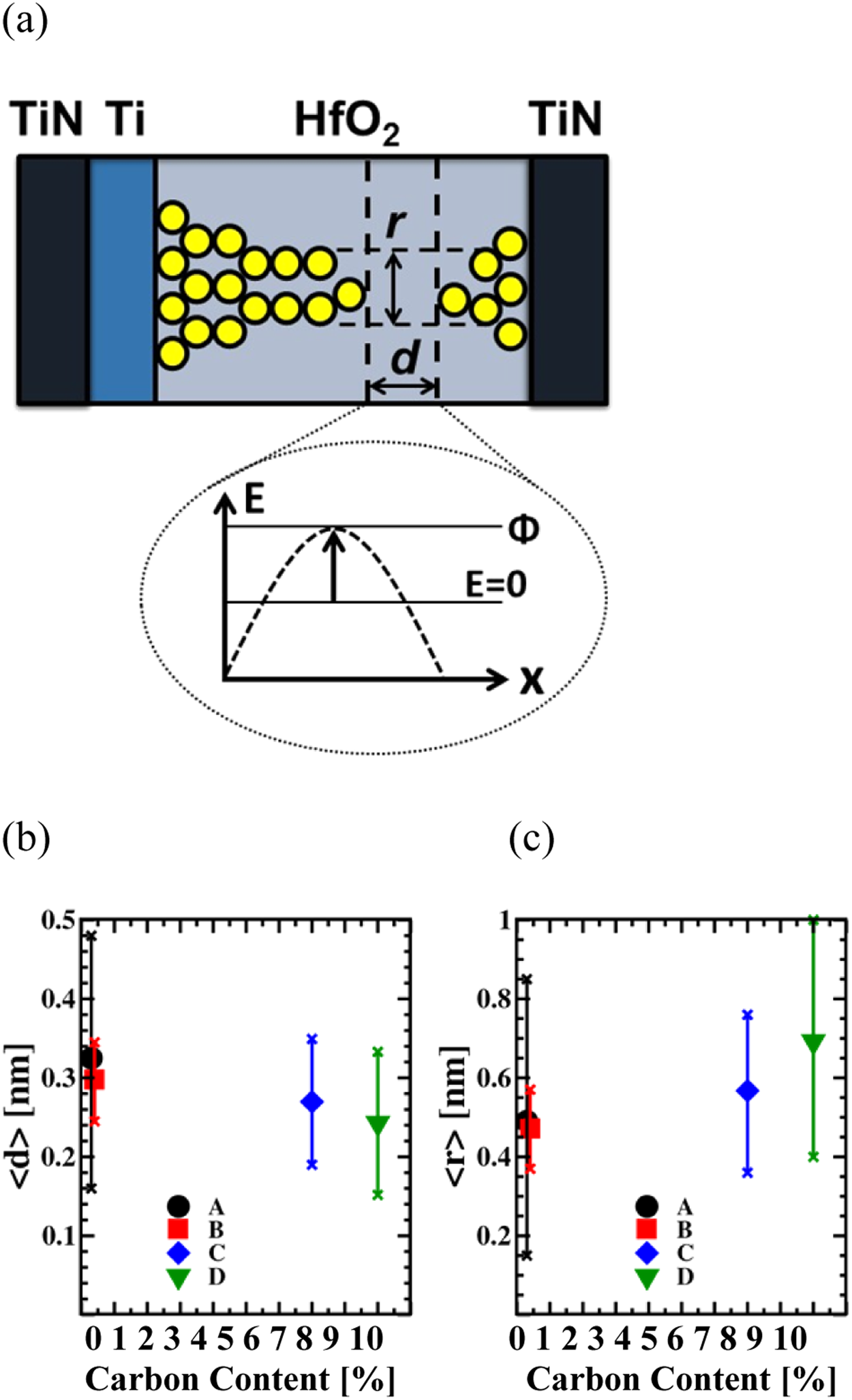

Schematic illustartion of the conductive filament shape after the reset procedure (a). Average values of calculated barrier length d (b) and radius of the filament constriction r (c). The error bars indicate the standard deviation.
