From: ICAM1 expression is induced by proinflammatory cytokines and associated with TLS formation in aggressive breast cancer subtypes

Figure 5

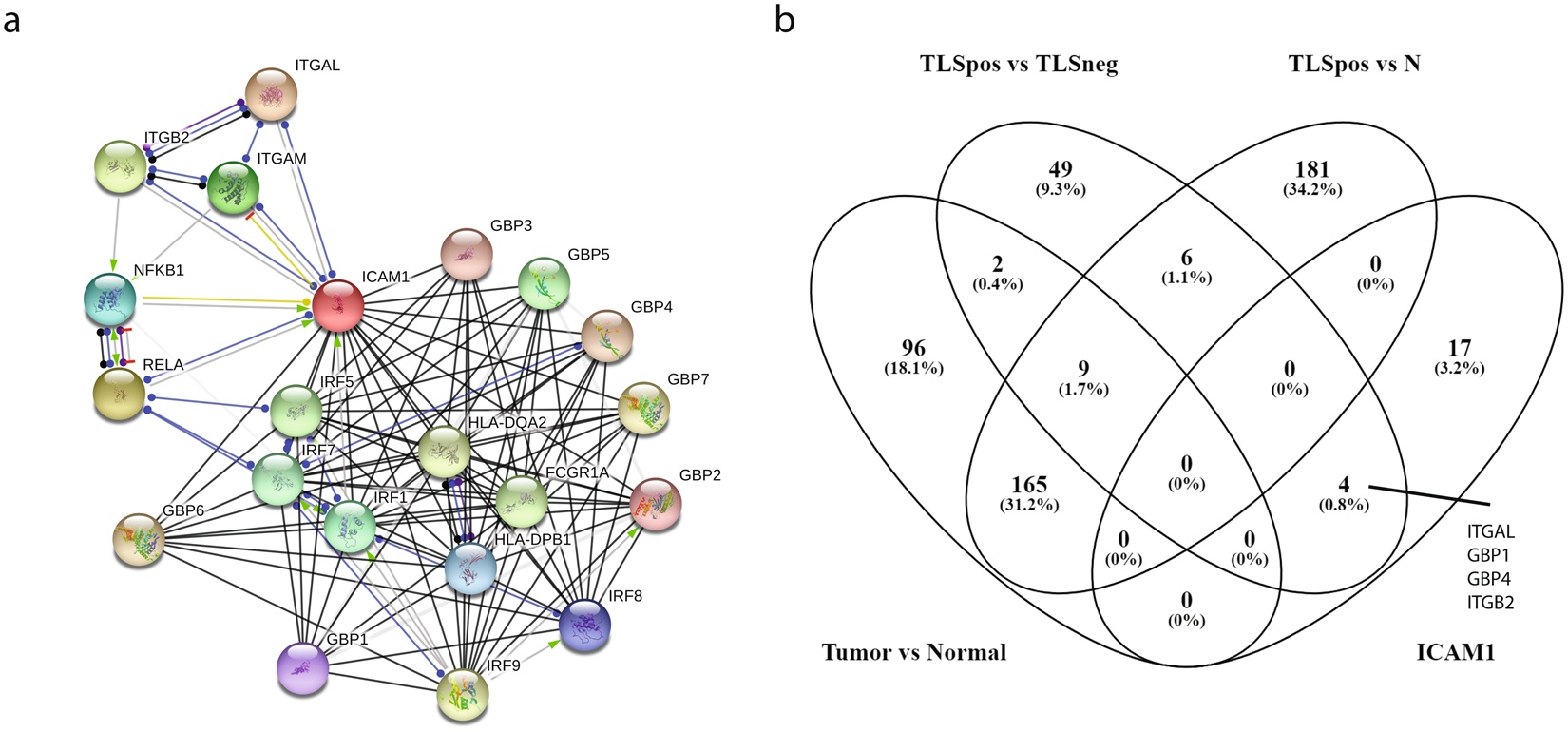

Identification of genes related to ICAM1 in TLS positive tumors. (a) An interaction node network of the nearest partners to ICAM1 obtained using STRING software. (b) Comparison of the differentially expressed genes from Tumor versus Normal, TLS positive tumors versus TLS negative tumors, TLS positive tumors versus Normal, and the interaction partners of ICAM1. N; normal, TLSpos; TLS positive tumors, TLSneg; TLS negative tumors.
