Figure 3

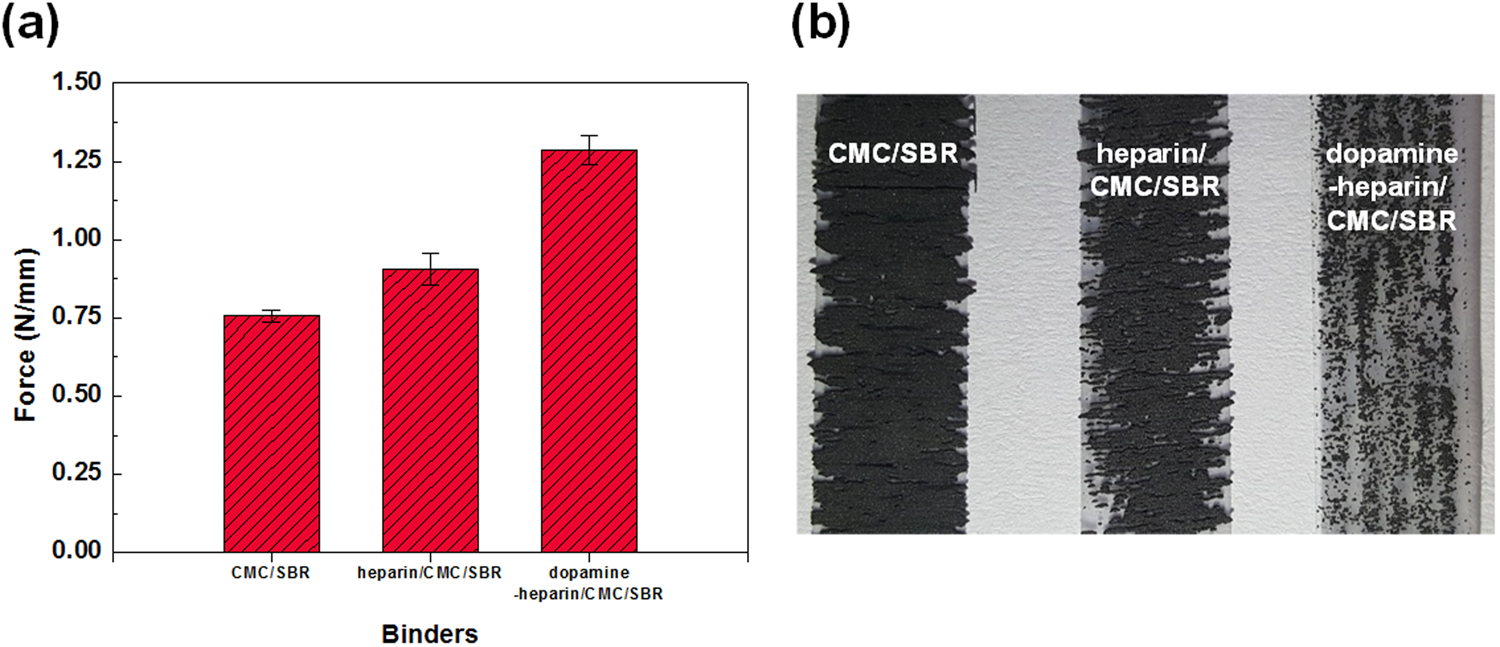

Peel test results with its mean forces (a) and images (black regions represent the detached electrode components and the white regions indicate transmitted light) (b) of the CMC/SBR-, heparin/CMC/SBR- and dopamine-heparin/CMC/SBR-based electrodes.
