From: High Dose Vitamin D supplementation alters faecal microbiome and predisposes mice to more severe colitis

Figure 4

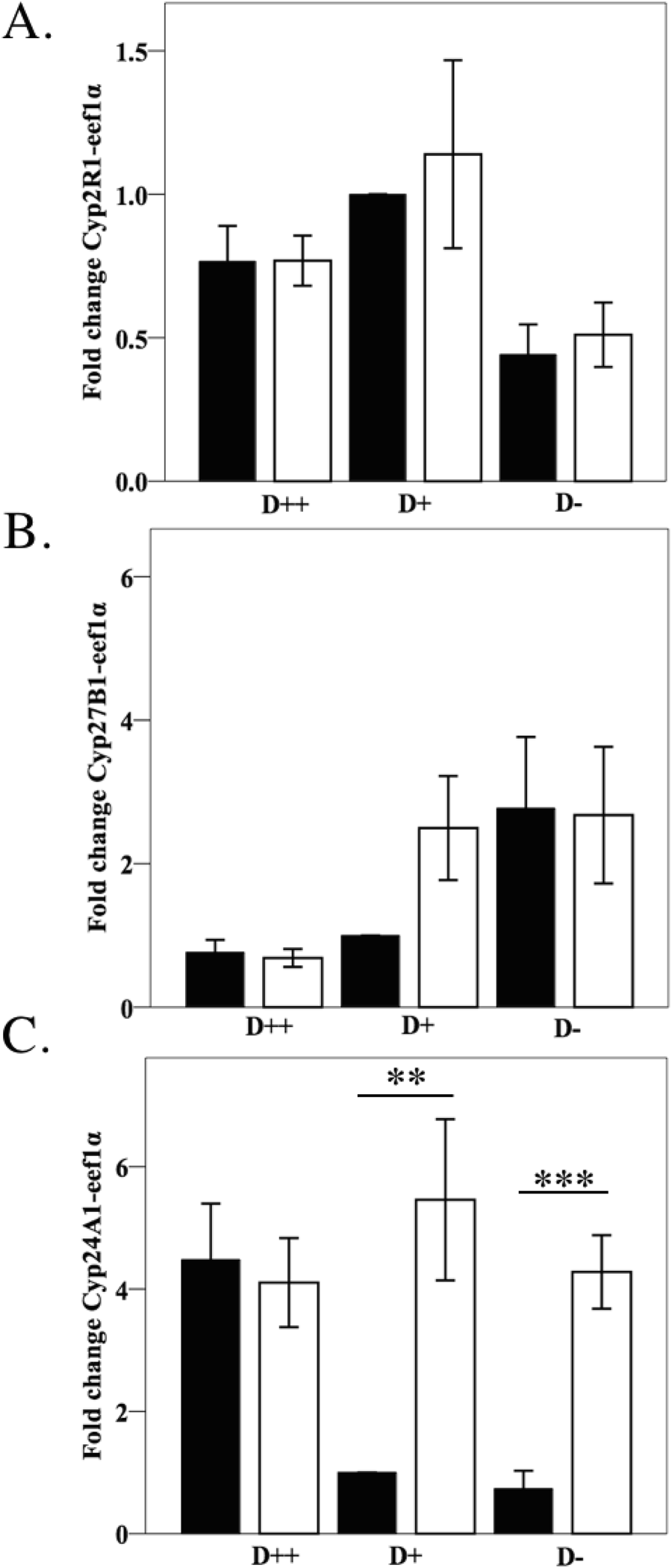

Kidney Cyp24A1 gene expression is upregulated with DSS colitis. Female C57Bl/6 mice were established on three vitamin D diets for 4 weeks before treatment with DSS. On day 7 mice were sacrificed with livers and kidneys harvested to determine (A) Liver Cyp2R1, (B) Kidney Cyp 27B1, and (C). Kidney Cyp24A1 gene expression. mRNA gene expression by qtPCR was calculated using the 2−ΔΔCT method with eEF1α as the housekeeping gene, n = 5–10/group. Solid bars for control mice, open bars for DSS mice. Values are expressed as mean ± SEM, from at least two experiments. *P < 0.05, **P < 0.01, ***P < 0.001.
