Figure 4

From: MiR-146a induction by cyanobacterial lipopolysaccharide antagonist (CyP) mediates endotoxin cross-tolerance

Figure 4

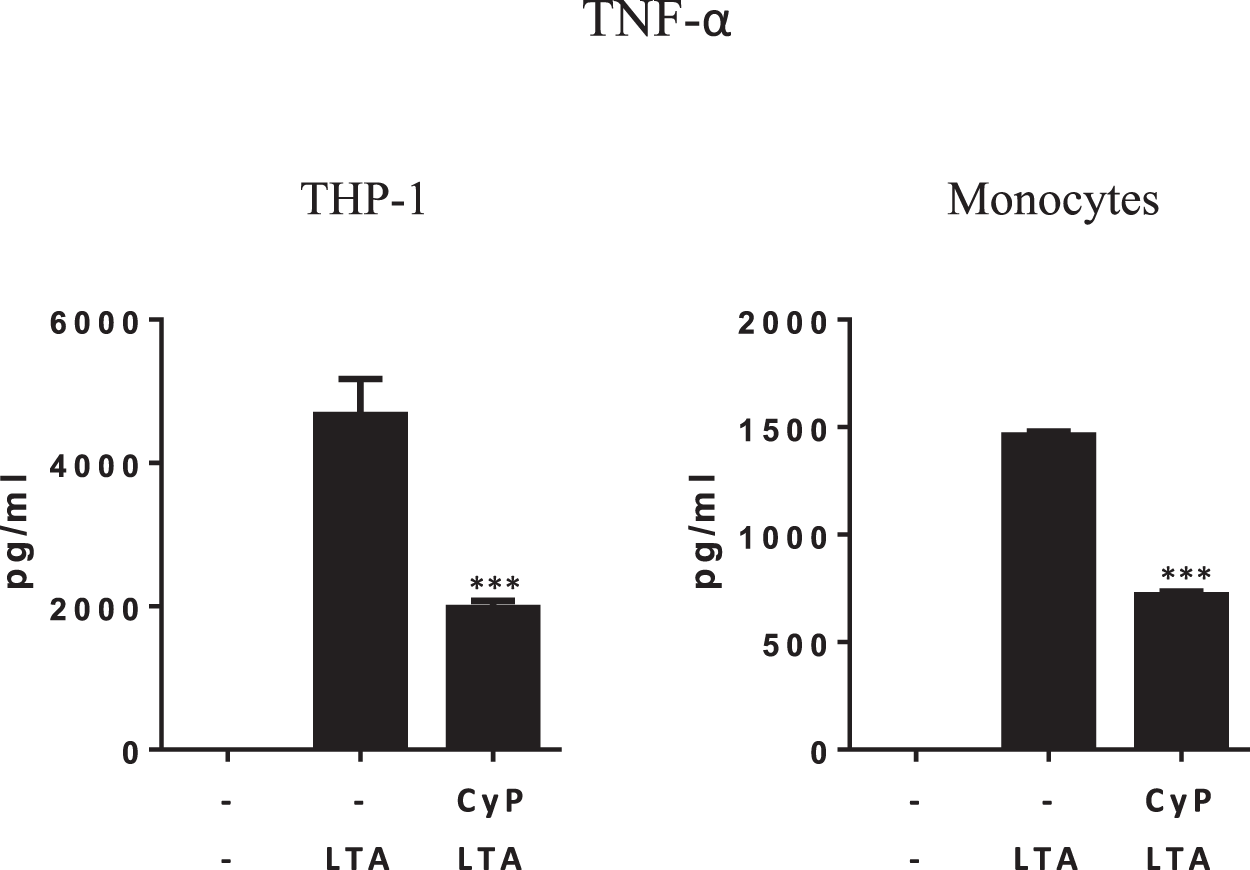

Reduction of TNF-α production by CyP in experiments of cross-tolerance to LTA. THP-1 cells and primary human monocytes were primed with CyP (10 µg/ml) for 16–18 h, washed twice, and then incubated with LTA from S. aureus (2 µg/ml) for 5 h. Supernatants were collected and TNF-α amounts measured by ELISA. Results are mean ± S.D. of triplicate cultures. ***p < 0,001 (t-test).
