Figure 5

From: Porous SnO2 nanoparticles based ion chromatographic determination of non-fluorescent antibiotic (chloramphenicol) in complex samples

Figure 5

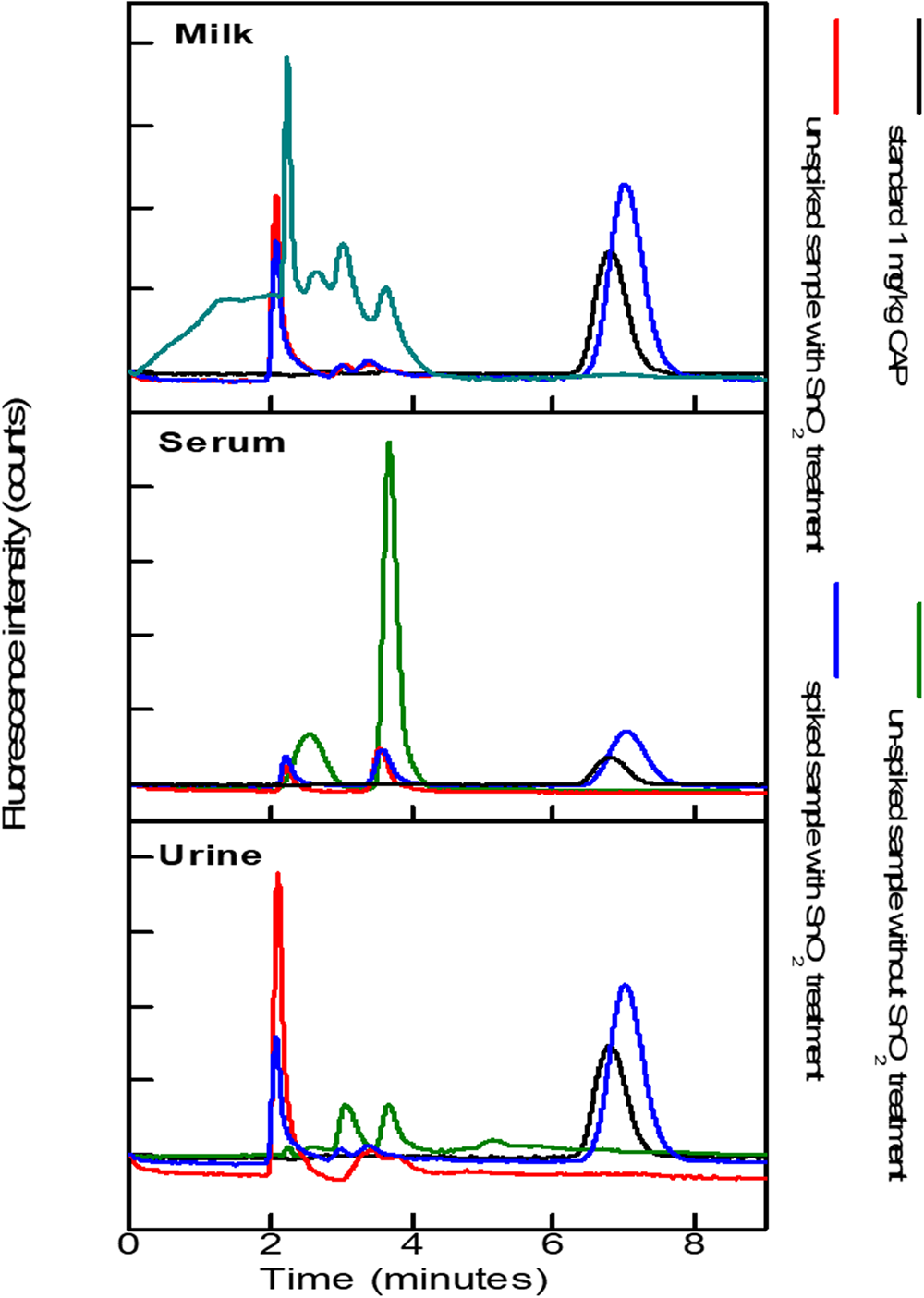

Samples (milk, human serum and urine) chromatograms spiked with CAP (0.48 mg/kg) after extraction with µ-sample extraction method: (black line) standard with sorbent treatment; (green line) real sample after without sorbent treatment; (red line) real sample after sorbent treatment and (blue line) spiked sample after sorbent treatment.
