From: Scenario planning with linked land-sea models inform where forest conservation actions will promote coral reef resilience

Figure 5

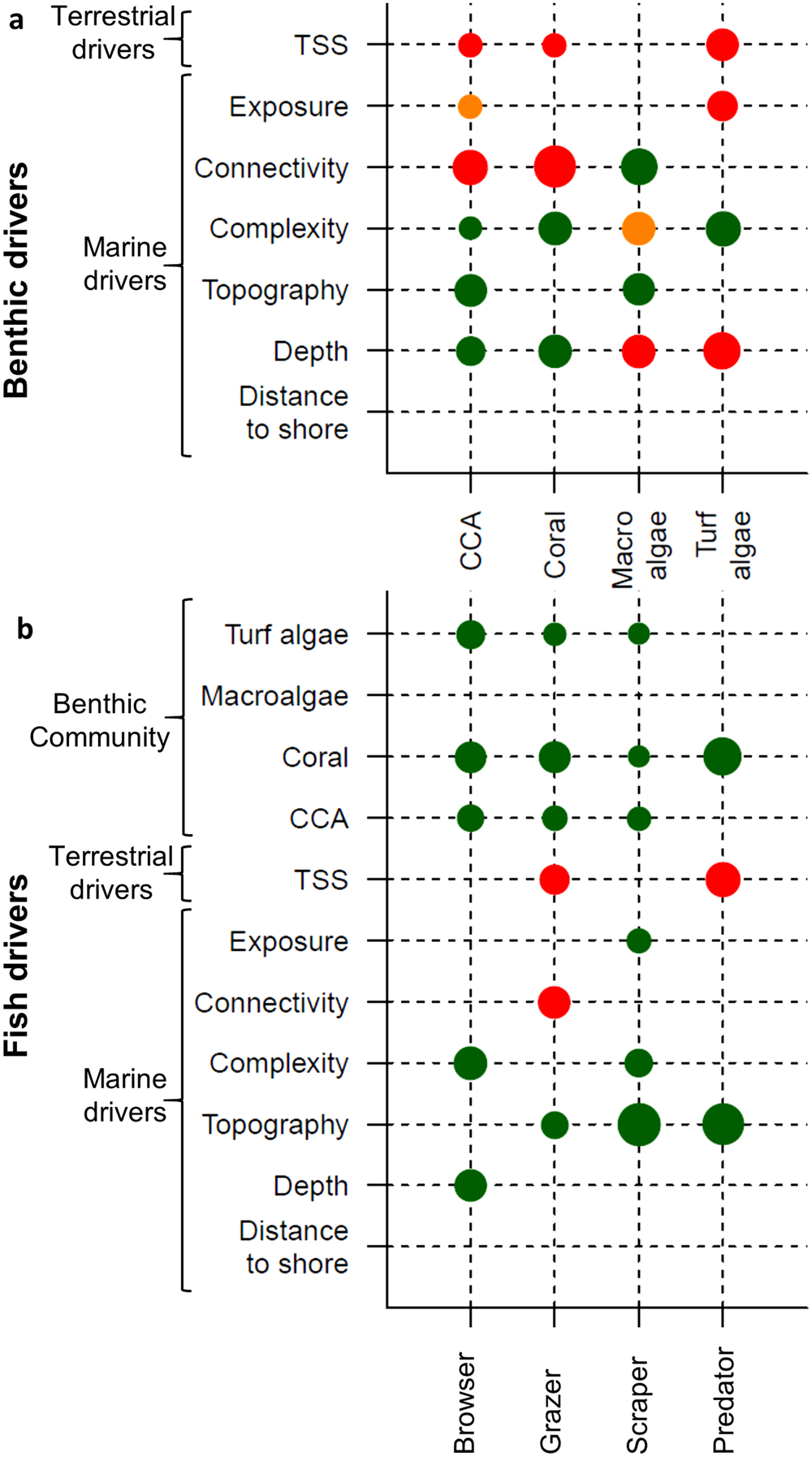

Coral reef models. Benthic (top) and fish (bottom) indicators are represented along the X axes and the terrestrial and marine drivers on the Y axes. The bubble size represents the relative percent contribution of each driver and the color indicates whether the relationship between the indicator and driver is positive (green), convex/concave (orange), or negative (red).
