Figure 5
From: Chiral visible light metasurface patterned in monocrystalline silicon by focused ion beam

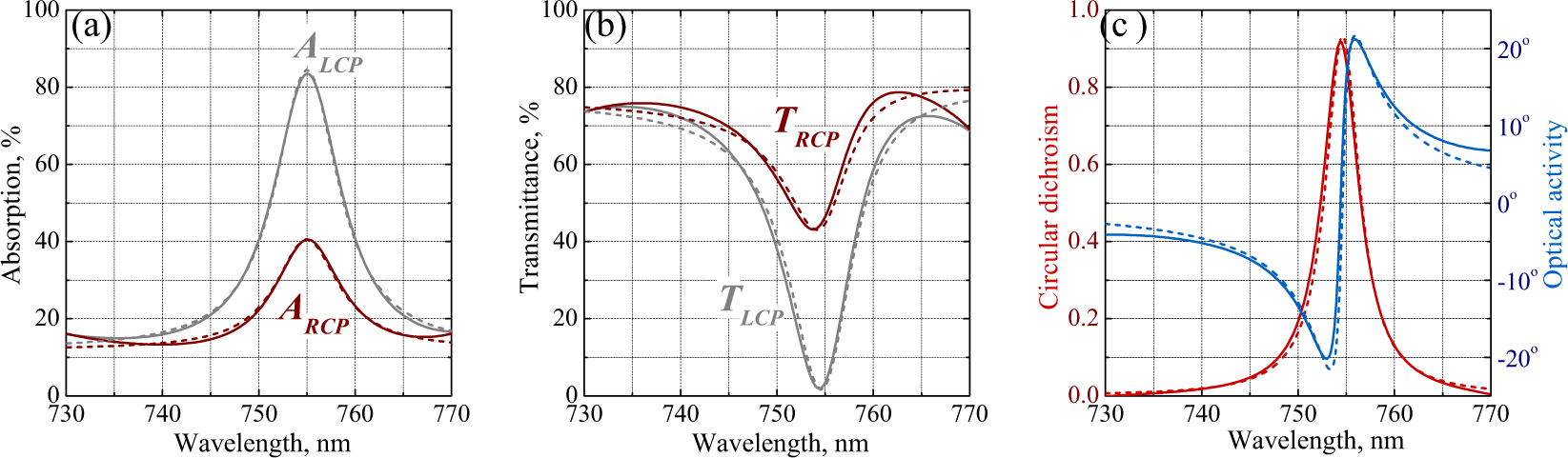

Simulated resonance of the optical properties of chiral metasurface (solid) and their fit with single resonance chiral COM theory (dashed): absorption (a) and transmittance (b) of LCP and RCP light; CD and OA spectra (c). The COM theory parameters are: ω0 = 2.49 ⋅ 1015 rad/s (which corresponds to λ0 = 755 nm), γ = 1.31 ⋅ 1013 rad/s, α0 = 0.119, αR = 0.287, αL = 0.727, τ0 = 0.882, τR = 0.235 e2.78i and τL = 0.763 e3.03i.
