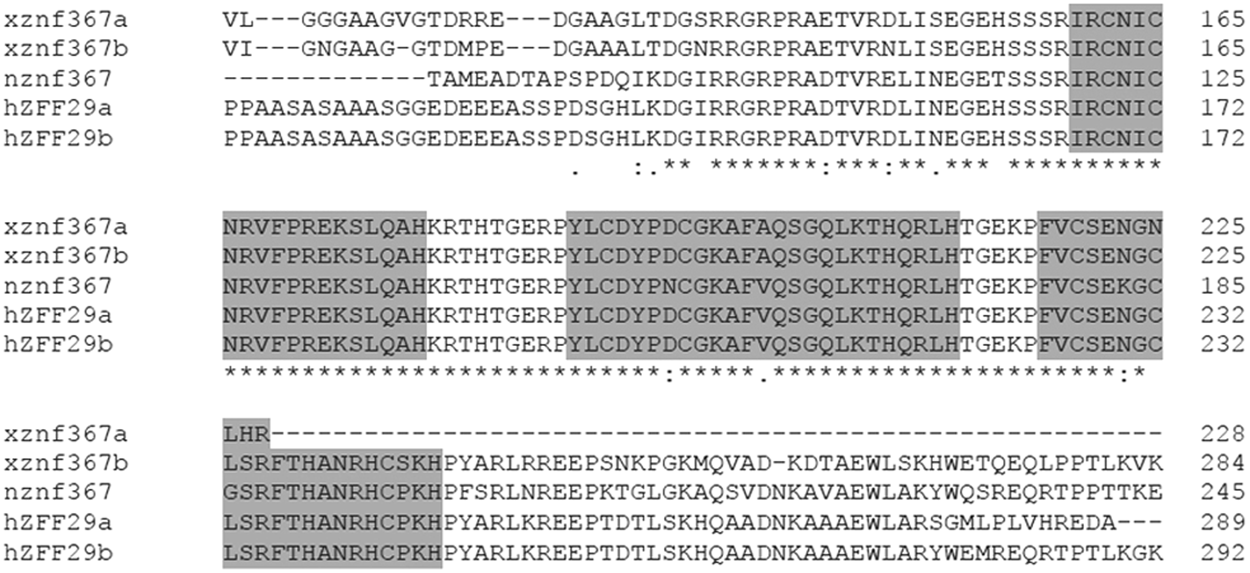

Figure 1

Multiple sequence alignments of znf367 amino acid sequences. The gray boxes highlighted the conserved zinc-fingers binding domains of znf367 from X. laevis (both splicing variants znf367a and znf367b), human (both splicing variants ZFF29a and ZFF29b) and N. furzeri (n) obtained using Clustal Omega.
