Figure 6

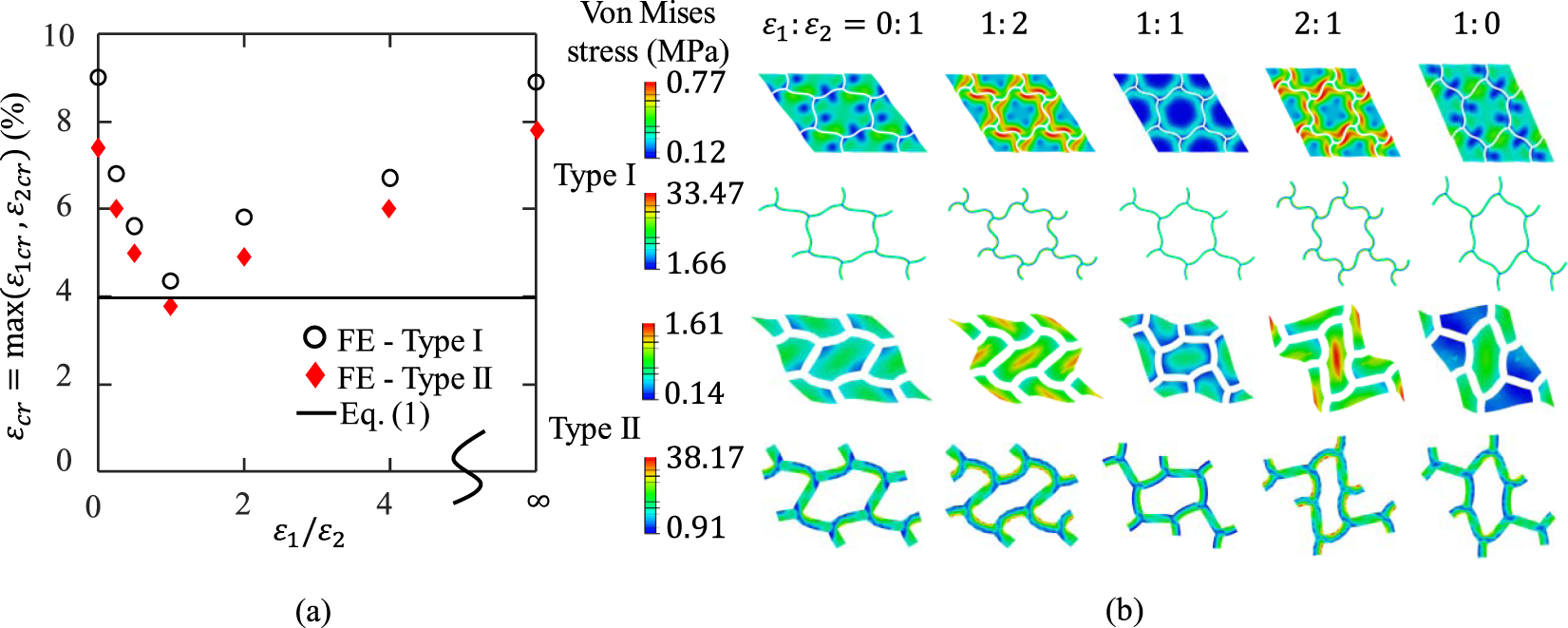

(a) The critical strain of instability for various bi-axial strain ratios, and (b) FE contours (with deformation amplification factor 2) of the matrix and the layers for Type I and Type II patterns, respectively.
