From: Functional near-infrared spectroscopy for monitoring macaque cerebral motor activity during voluntary movements without head fixation

Figure 5

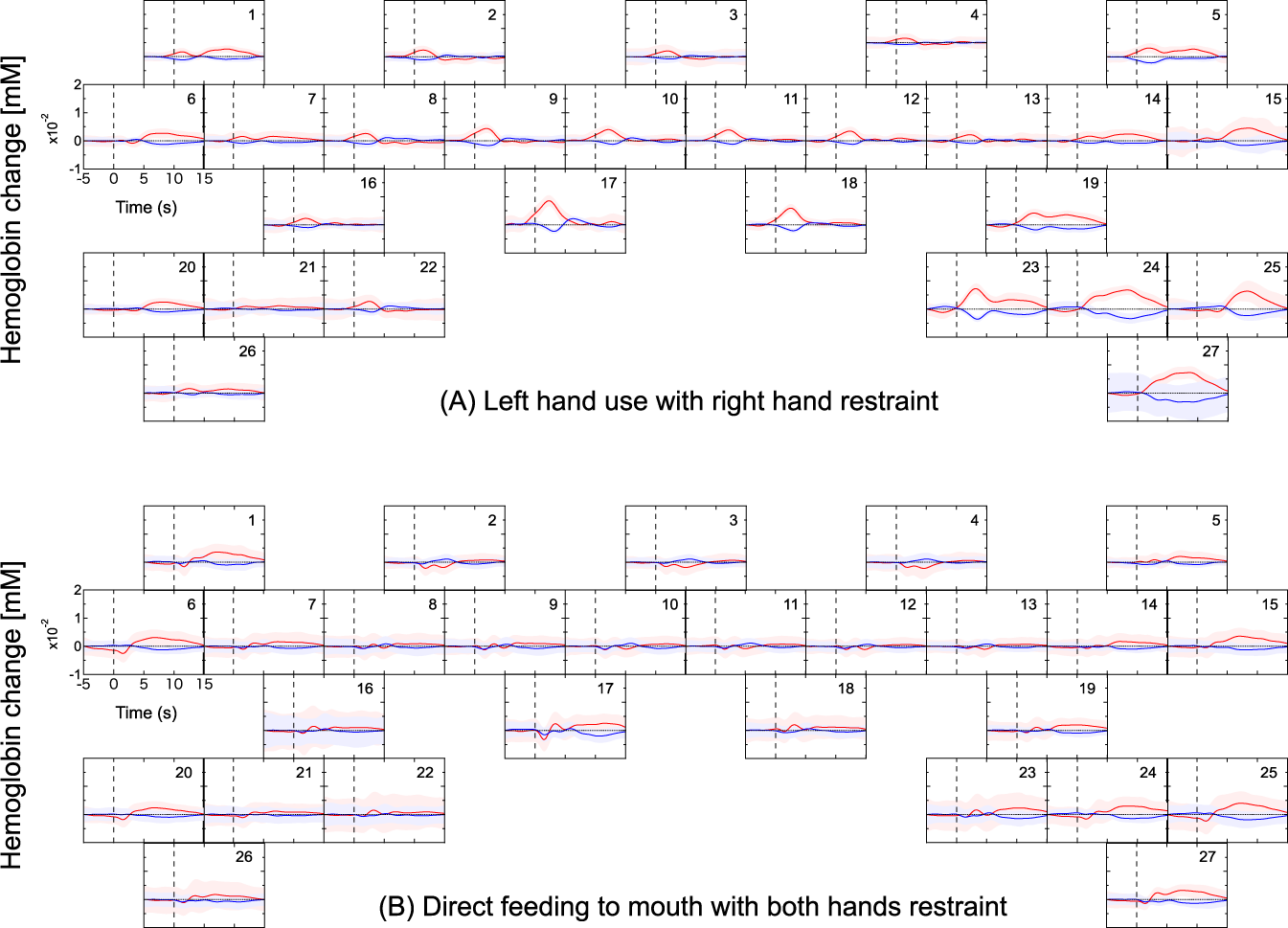

Hemodynamic responses evoked by different restrained conditions. (A) Left hand food retrieval with the right forelimb constrained and (B) direct feeding to mouth with both hands restrained. Each frame depicts the block averages and the standard deviations of each channel among for ΔHbO and ΔHbR drawn with red and blue lines and bands, respectively.
