Figure 2
From: Thermoelectric properties of SnSe nanowires with different diameters

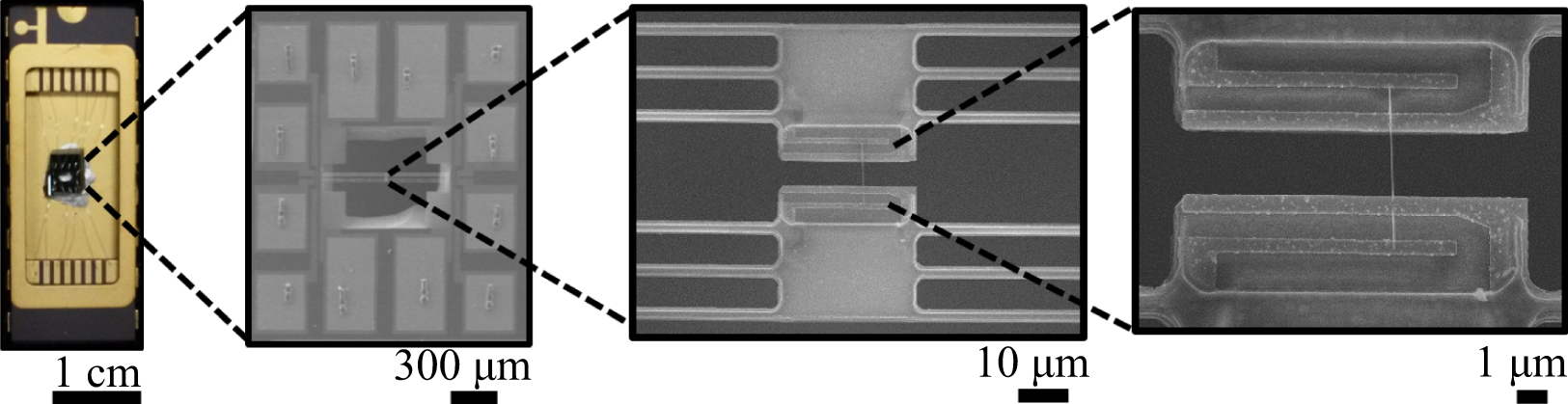

From left to right, optical image of the micro-thermometry device wired to a chip carrier, followed by low and high magnification SEM images of a 130 nm diameter SnSe nanowire transferred onto the microdevice.
