Figure 4

From: Sexual dimorphism in Drosophila melanogaster survival of Beauveria bassiana infection depends on core immune signaling

Figure 4

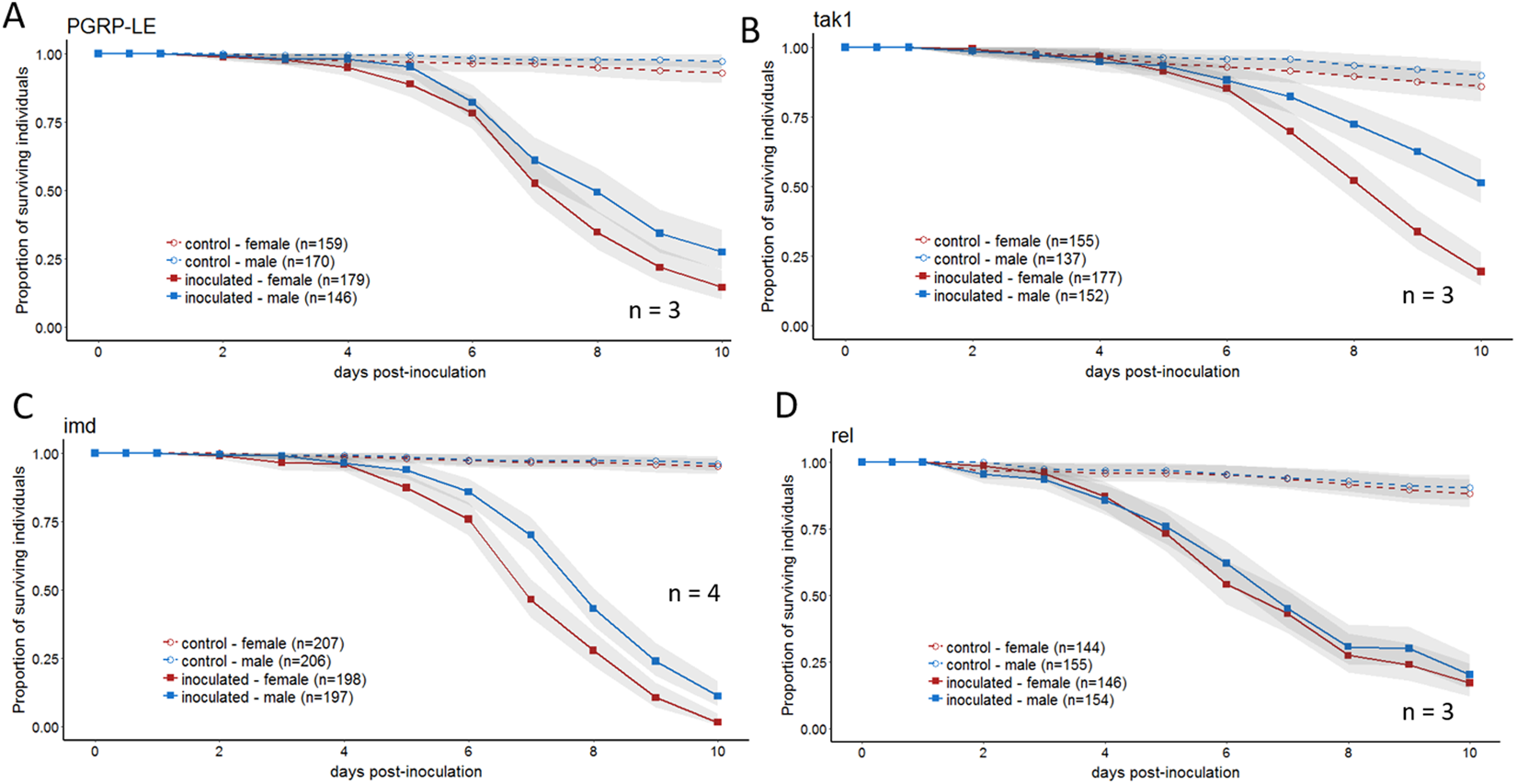

Impact of Imd pathway on sexual dimorphism. Survival after spraying flies with GHA was monitored for 10 days in (A) PGRP-LE mutants, (B) tak1 mutants, (C) imd mutants, (D) and relish mutants. Graphs are a combination of multiple independent replicates (n) indicated on each panel. Statistics assessing the impact of sex on survival for each line is reported in Table S4.
