Figure 4

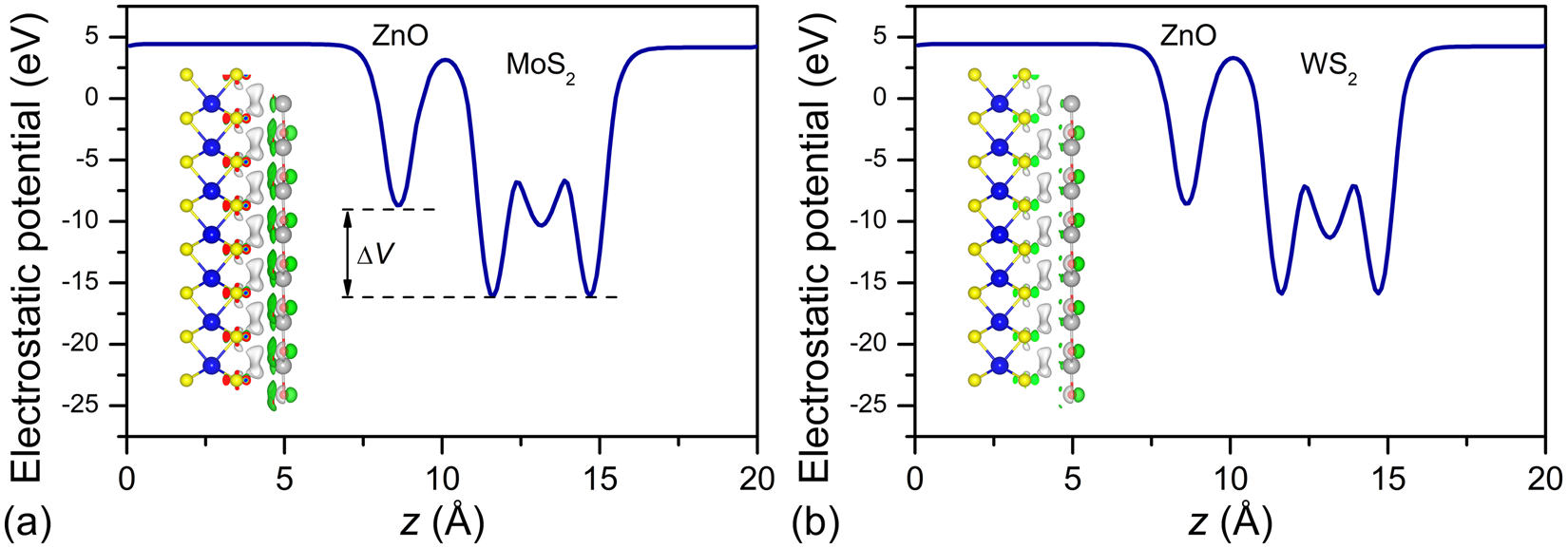

Potential drop across the interface of the (a) MoS₂/ZnO and (b) WS₂/ZnO vdW heterostructure. The isosurface of charge difference (set to 0.003 e/ų) is also shown in the corresponding figure; the yellow and cyan regions denote the gain and loss of electrons, respectively.
