Figure 8 | Scientific Reports

Figure 8

From: Myocardial fatty acid uptake through CD36 is indispensable for sufficient bioenergetic metabolism to prevent progression of pressure overload-induced heart failure

Figure 8

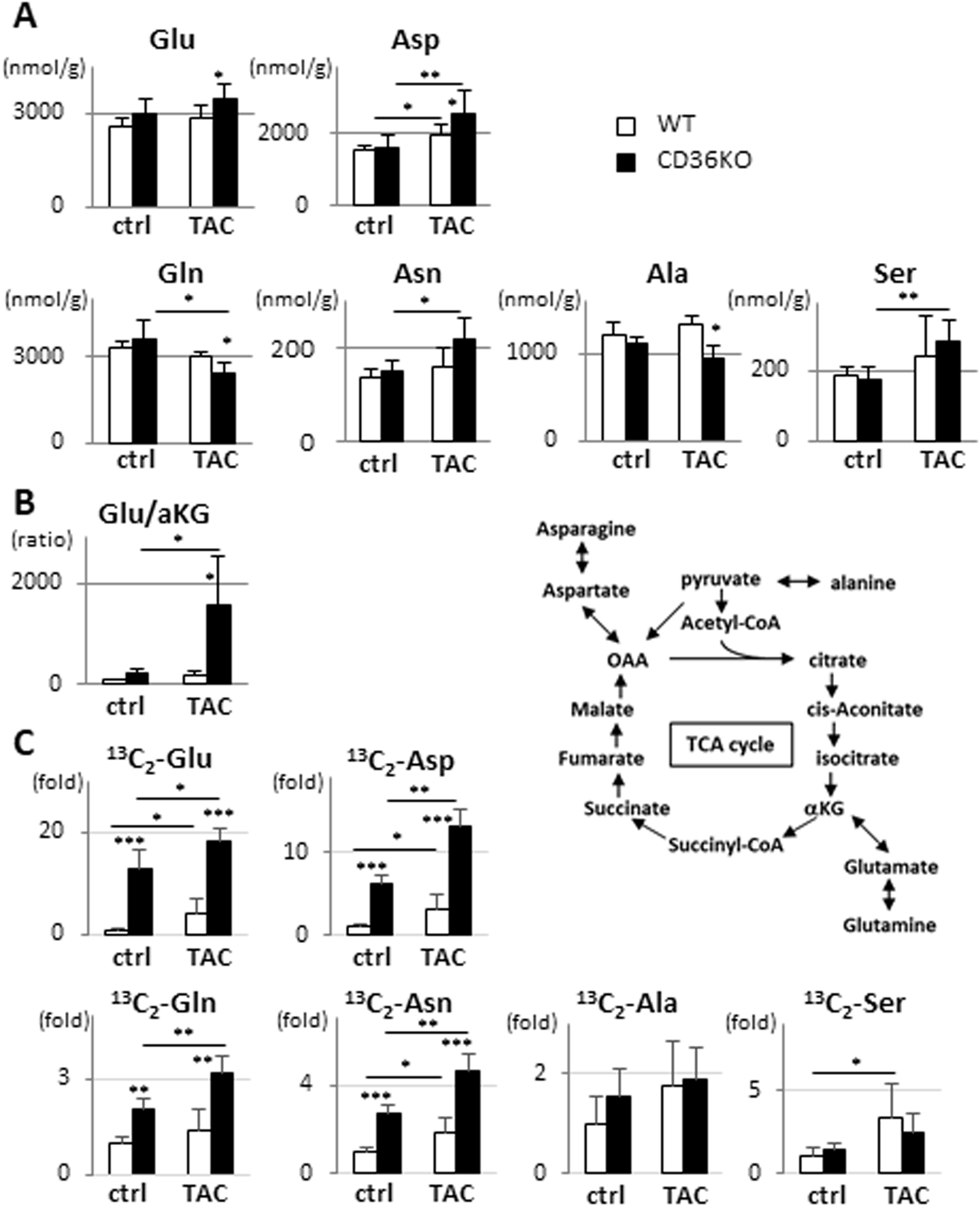

Biosynthesis of non-essential amino acids from glucose seems to be enhanced in CD36KO-TAC hearts. (A) Steady state levels of non-essential amino acids in hearts. Hearts were isolated after a 12 h fast for metabolome analysis (n = 5–7). Glutamate (Glu), aspartate (Asp), glutamine (Gln) and asparagine (Asn) can be generated from metabolites in the TCA cycle. Alanine (Ala) and serine (Ser) can be produced from glycolytic intermediates. (B) Glu/α-KG, glutamate/α-ketoglutarate ratio (n = 5–7). (C) Tracer study with 13C6-glucose. After a 12 h fast, hearts were isolated 10 min after intraperitoneal injection of 13C6-glucose (n = 5–7). *p < 0.05, **p < 0.01, ***p < 0.001.
